Steel rim styl.12 for BMW 3 Series E36 318ti (2000)

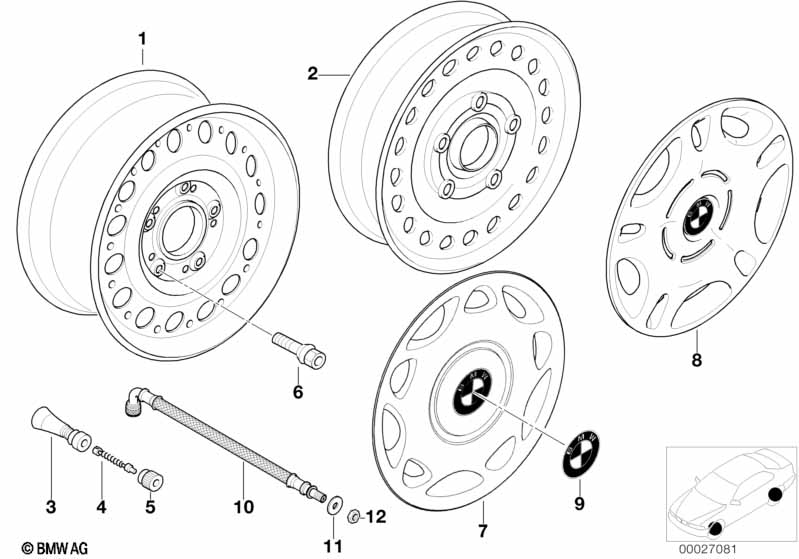

This Steel rim styl.12 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steel rim schwarz | 61/2JX15 ET:47 | 4 | 36111095005 | $86.00 | ENDED, +core | Shop at ECS Tuning | |||
| ONLY FOR WINTER TYRES | ||||||||||
| 01 | Steel rim schwarz | 6JX15 ET:42 | 4 | 36111095007 | $72.50 | +core | Shop at ECS Tuning | |||
| 02 | Compact spare wheel, steel, black | 3.50BX15 ET:36 | 1 | 36111095069 | $63.00 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| ONLY FOR EMERGENCY WHEEL | ||||||||||
| 03 | Rubber valve | L=61,5MM | 1 | 36121182759 | $3.30 | Shop at ECS Tuning | ||||
| 04 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 05 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 06 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 08 | Wheel cover | 15" | 4 | 36131094158 | $35.70 | Shop at ECS Tuning | ||||
| 09 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
