Alloy rim styl.12 for BMW 5 Series E39 525d (2003)

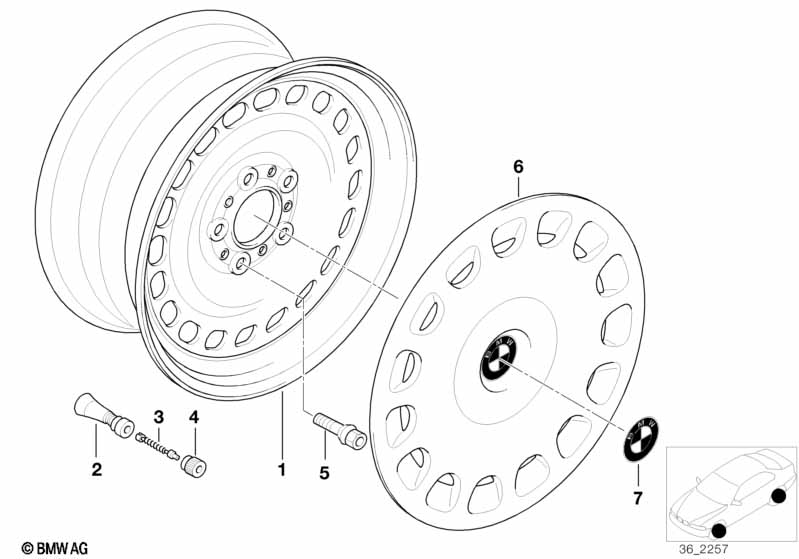

This Alloy rim styl.12 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim, black | 7JX15 ET:20 | 4 | 36111092696 | $276.95 | +core | Shop at ECS Tuning | |||
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 02 | Screw-in valve RDC | GRÜN | 4 | 36146792830 | Shop at ECS Tuning | |||||
| 03 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 04 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Wheel cover | 15" | 4 | 36136768639 | $37.00 | Shop at ECS Tuning | ||||
| 07 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Alloy rim styl.12?
- This technical diagram illustrates the Alloy rim styl.12 within the Wheels group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim, black (Part #36111092696).
- Which models use the hardware listed in this Alloy rim styl.12?
- The hardware and components featured in the Alloy rim styl.12 are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Light alloy rim, black (36111092696) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alloy rim styl.12 assembly?
- Each item in the Alloy rim styl.12 corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Light alloy rim, black by locating its position on the schematic, which then links to the official BMW part number 36111092696 for the Wheels section.
