Steel rim styl.12 for BMW 5 Series E39 528i (2000)

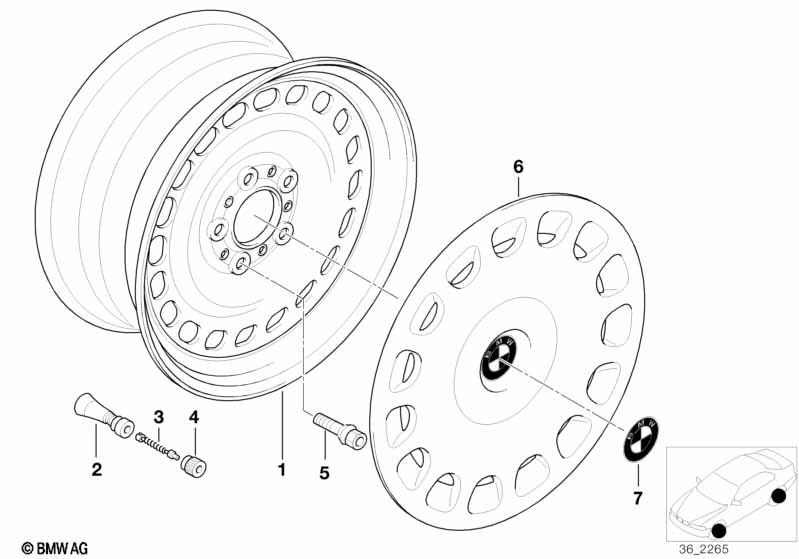

This Steel rim styl.12 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY FOR WINTER TYRES | |||||||||
| 01 | Steel rim schwarz | 61/2JX15 ET:18 | 4 | 36111093042 | $90.00 | +core | Shop at ECS Tuning | |||
| 01 | Steel rim schwarz | 7JX15 ET:20 | 4 | 36111093546 | $98.50 | +core | Shop at ECS Tuning | |||
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 02 | Screw-in valve RDC | GRÜN | 4 | 36146792830 | Shop at ECS Tuning | |||||
| 03 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 04 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Wheel cover | 15" | 4 | 36136768639 | $37.00 | Shop at ECS Tuning | ||||
| 07 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Steel rim styl.12?
- This technical diagram illustrates the Steel rim styl.12 within the Wheels group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Steel rim schwarz (Part #36111093042).
- Which models use the hardware listed in this Steel rim styl.12?
- The hardware and components featured in the Steel rim styl.12 are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Steel rim schwarz (36111093042) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steel rim styl.12 assembly?
- Each item in the Steel rim styl.12 corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Steel rim schwarz by locating its position on the schematic, which then links to the official BMW part number 36111093042 for the Wheels section.
