Spoke wheel rim/spoke for BMW R50/5-R90S 69-76 R90S (1976)

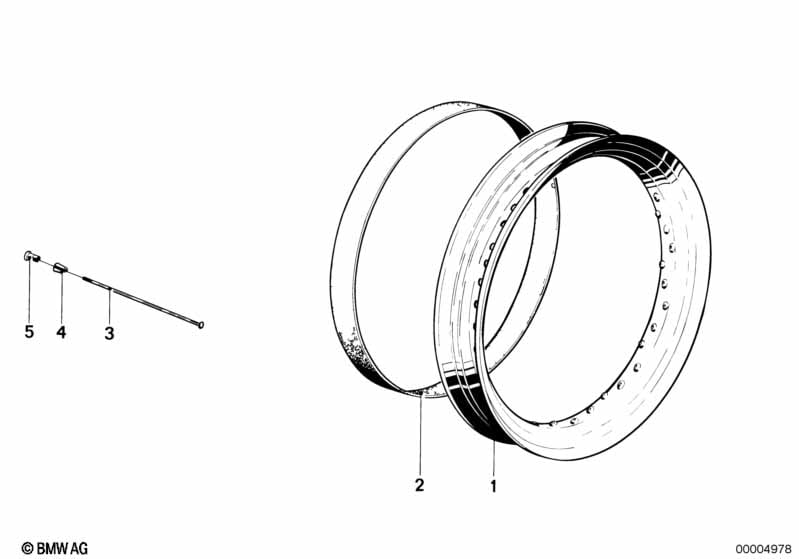

This Spoke wheel rim/spoke technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rim | 1,85BX19 | 1 | 36311233321 | $453.29 | +core | Shop at ECS Tuning | |||
| 01 | Rim | 2,15BX18 | 1 | 36311233325 | $453.14 | +core | Shop at ECS Tuning | |||
| 02 | Fabric-Tape | L=50M, B=30MM | 1 | 61138351989 | $1.09 | Shop at ECS Tuning | ||||
| 03 | Spoke | 18"/ L=140MM | X | 36311234591 | $3.38 | +core | Shop at ECS Tuning | |||
| 03 | Spoke front | 19"/ L=176MM | X | 36311234593 | $3.38 | +core | Shop at ECS Tuning | |||
| 04 | Balance weight, zinc, w. adhesive foil | 10G | X | 36317720636 | Shop at ECS Tuning | |||||
| 04 | Balance weight, zinc, w. adhesive foil | 15G | X | 36317720637 | Shop at ECS Tuning | |||||
| 04 | Balance weight, zinc, w. adhesive foil | 20G | X | 36317720638 | Shop at ECS Tuning | |||||
| 05 | NIpple | M4 | X | 07119930070 | $1.43 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
