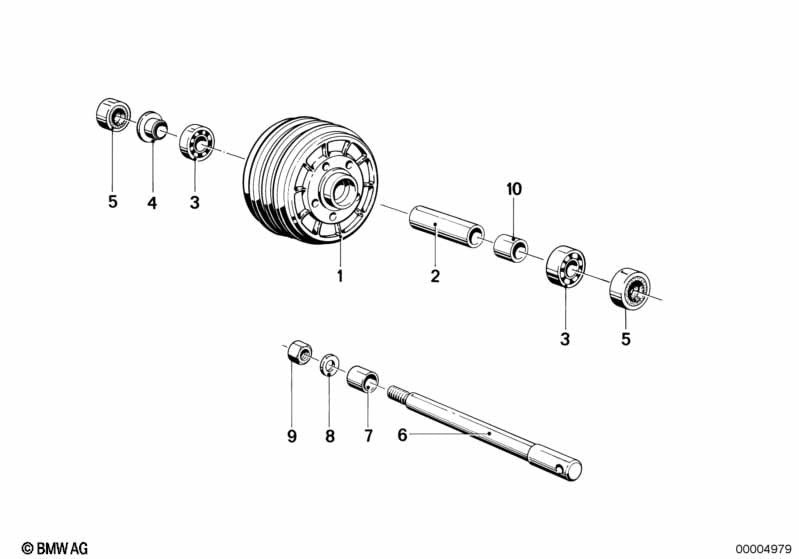

Wheel hub, front for BMW R45-R65LS..78-85 R65 (1985)
This Wheel hub, front technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hub | 1 | 36311235819 | $235.02 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Pipe | 1 | 36311236140 | $21.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tapered roller bearing | 40X17X13.25 | 2 | 07119985005 | $57.36 | Shop at ECS Tuning | ||||
| 04 | Compression ring | 2 | 36311230322 | $8.67 | Shop at ECS Tuning | |||||
| 05 | Shaft seal | 22X40X7 | 2 | 36311235838 | ENDED | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 22X40X7 | 2 | 36311240238 | Shop at ECS Tuning | |||||
| 06 | Quick-release axle | 17MM | 1 | 36311236144 | $69.37 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Bush | 1 | 36311236145 | $2.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 1 | 34111233020 | $3.75 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 10 | Shim | 6,300MM/D=17MM | X | 36311230781 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,350MM/D=17MM | X | 36311230782 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,400MM/D=17MM | X | 36311230783 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,450MM/D=17MM | X | 36311230784 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,500MM/D=17MM | X | 36311230785 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,550MM/D=17MM | X | 36311230786 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,600MM/D=17MM | X | 36311230787 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,700MM/D=17MM | X | 36311230788 | $5.90 | Shop at ECS Tuning | ||||
| 10 | Shim | 6,800MM/D=17MM | X | 36311230789 | $5.90 | Shop at ECS Tuning | ||||
| 10 | Shim | 6,650MM/D=17MM | X | 36311231240 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,750MM/D=17MM | X | 36311231241 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,850MM/D=17MM | X | 36311231242 | $5.77 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,900MM/D=17MM | X | 36311231243 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 6,950MM/D=17MM | X | 36311231244 | $5.90 | Shop at ECS Tuning | ||||
| 10 | Shim | 7,000MM/D=17 | X | 36311231245 | $5.90 | ENDED | Shop at ECS Tuning | |||
| 10 | Shim | 7,050MM/D=17 | X | 36311231246 | $5.90 | Shop at ECS Tuning | ||||
| 10 | Shim | 7,100MM/D=17 | X | 36311231247 | $5.90 | Shop at ECS Tuning | ||||
| 10 | Shim | 7,150MM/D=17 | X | 36311231248 | $5.90 | Shop at ECS Tuning | ||||
| 10 | Shim | 7,200MM/D=17 | X | 36311231249 | $5.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Wheel hub, front?
- This technical diagram illustrates the Wheel hub, front within the Wheels and tires group for the R45-R65LS..78-85 R65 produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Hub (Part #36311235819).
- Which models use the hardware listed in this Wheel hub, front?
- The hardware and components featured in the Wheel hub, front are specific to the R45-R65LS..78-85 R65 produced during 1985. These technical specifications ensure that parts like the Hub (36311235819) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel hub, front assembly?
- Each item in the Wheel hub, front corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Hub by locating its position on the schematic, which then links to the official BMW part number 36311235819 for the Wheels and tires section.
