Cast rim silber w. drum brake rear for BMW R45-R65LS..78-85 R65 (1985)

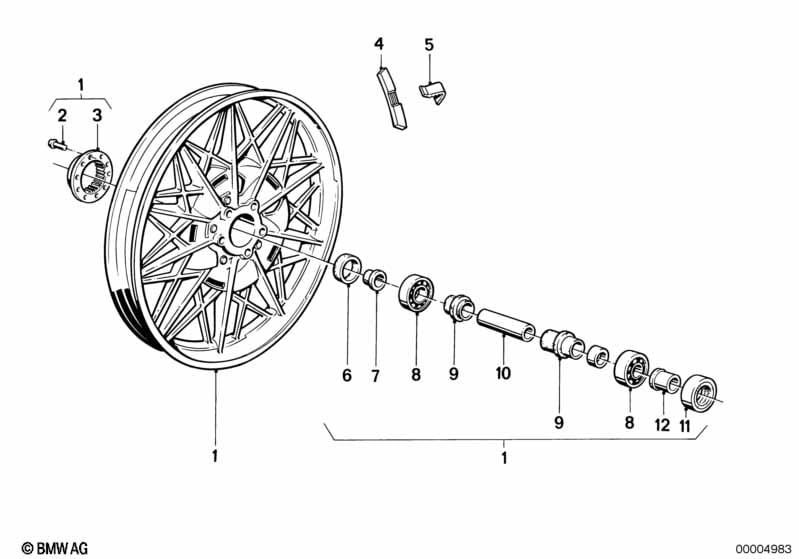

This Cast rim silber w. drum brake rear technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cast rim silber w. drum brake rear | 2,50X18 | 1 | 36311238092 | $1139.80 | +core | Shop at ECS Tuning | |||
| 02 | Rivet | 6X25-ST-ZNS | X | 07119900800 | $0.56 | Shop at ECS Tuning | ||||
| 03 | Driving dog | 1 | 36311232525 | $113.09 | +core | Shop at ECS Tuning | ||||
| 04 | Balance weight | 5G | X | 36311235625 | $3.00 | ENDED | Shop at ECS Tuning | |||
| 04 | Balance weight | 10G | X | 36311235626 | ENDED | Shop at ECS Tuning | ||||
| 04 | Balance weight | 20G | X | 36311235627 | $3.48 | Shop at ECS Tuning | ||||
| 04 | Balance weight | 30G | X | 36311235628 | $3.96 | ENDED | Shop at ECS Tuning | |||
| 04 | Balance weight | 15G | X | 36311240152 | $3.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Balance weight | 25G | X | 36311240153 | $3.65 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring | X | 36311235632 | $0.90 | Shop at ECS Tuning | |||||
| 06 | Shaft seal | 1 | 36311235833 | Shop at ECS Tuning | ||||||
| 07 | Sleeve | 10,7MM | 1 | 36312301737 | $20.41 | Shop at ECS Tuning | ||||
| 07 | Sleeve | 9,2MM | 1 | 36314038142 | $12.44 | Shop at ECS Tuning | ||||
| 08 | Tapered roller bearing | 40X17X13.25 | 2 | 07119985005 | $57.36 | Shop at ECS Tuning | ||||
| 09 | Ring | 2 | 36311237595 | $8.67 | Shop at ECS Tuning | |||||
| 10 | Pipe | 1 | 36311238875 | $33.11 | Shop at ECS Tuning | |||||
| 11 | Shaft seal | 22X40X7 | 1 | 36311235838 | ENDED | Shop at ECS Tuning | ||||
| 11 | Shaft seal | 22X40X7 | 1 | 36311240238 | Shop at ECS Tuning | |||||
| 12 | Compression ring | 1 | 36311230322 | $8.67 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
