Spoke wheel for BMW R50/5-R90S 69-76 R90S (1974)

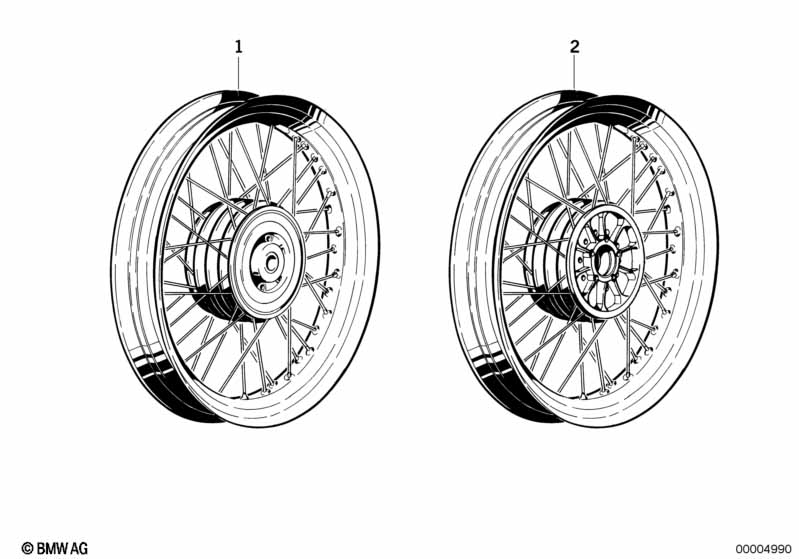

This Spoke wheel technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spoke wheel front | 1,85X19 | 1 | 09/1974 | 36311240501 | $1041.46 | ENDED, +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Supplementary set plug type axle | D17-D14MM | 1 | 09/1974 | 36311240987 | ENDED | Shop at ECS Tuning | |||
| 02 | Spoke wheel with drum brake rear | 2,15X18 | 1 | 36311239035 | $1104.79 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Spoke wheel?
- This technical diagram illustrates the Spoke wheel within the Wheels and tires group for the R50/5-R90S 69-76 R90S produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Spoke wheel front (Part #36311240501).
- Which models use the hardware listed in this Spoke wheel?
- The hardware and components featured in the Spoke wheel are specific to the R50/5-R90S 69-76 R90S produced during 1974. These technical specifications ensure that parts like the Spoke wheel front (36311240501) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Spoke wheel assembly?
- Each item in the Spoke wheel corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Spoke wheel front by locating its position on the schematic, which then links to the official BMW part number 36311240501 for the Wheels and tires section.
