Spoke wheel-wheel hub/dial shaft for BMW R50/5-R90S 69-76 R90S (1976)

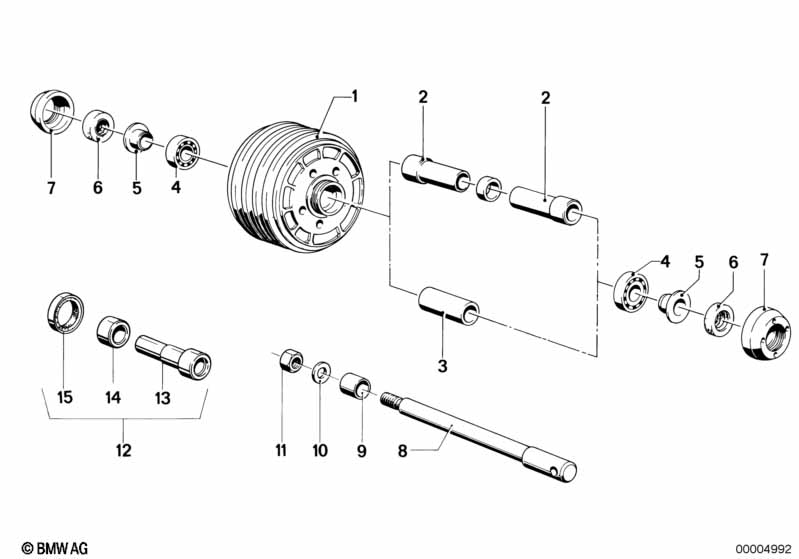

This Spoke wheel-wheel hub/dial shaft technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hub | 1 | 09/1974 | 36311237090 | $545.50 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Pipe | 1 | 09/1974 | 36311237606 | $21.74 | Shop at ECS Tuning | ||||
| 04 | Tapered roller bearing | 40X17X13.25 | 2 | 07119985005 | $57.36 | Shop at ECS Tuning | ||||
| 05 | Compression ring | 2 | 36311230322 | $8.67 | Shop at ECS Tuning | |||||
| 06 | Shaft seal | 36X22X8 | 2 | 36311233247 | Shop at ECS Tuning | |||||
| 07 | Knirled nut | 2 | 36311232422 | $43.96 | Shop at ECS Tuning | |||||
| 08 | Quick-release axle | D=17MM/L=253MM | 1 | 34111233490 | $119.95 | +core | Shop at ECS Tuning | |||
| 08 | Quick-release axle | 14MM | 1 | 36312060336 | $74.40 | Shop at ECS Tuning | ||||
| 09 | Bush | 1 | 09/1974 | 36311233491 | $32.15 | Shop at ECS Tuning | ||||
| 10 | Washer | 1 | 34111233020 | $3.75 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Spoke wheel-wheel hub/dial shaft?
- This technical diagram illustrates the Spoke wheel-wheel hub/dial shaft within the Wheels and tires group for the R50/5-R90S 69-76 R90S produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Hub (Part #36311237090).
- Which models use the hardware listed in this Spoke wheel-wheel hub/dial shaft?
- The hardware and components featured in the Spoke wheel-wheel hub/dial shaft are specific to the R50/5-R90S 69-76 R90S produced during 1976. These technical specifications ensure that parts like the Hub (36311237090) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Spoke wheel-wheel hub/dial shaft assembly?
- Each item in the Spoke wheel-wheel hub/dial shaft corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Hub by locating its position on the schematic, which then links to the official BMW part number 36311237090 for the Wheels and tires section.
