Multi-spoke styling (styl.4) for BMW 7 Series E38 728i (1998)

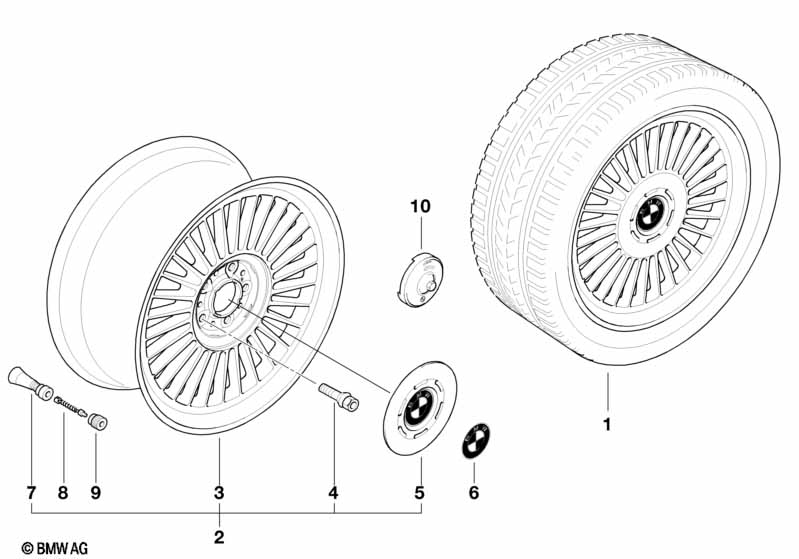

This Multi-spoke styling (styl.4) technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Alloy rim forged | 8JX16 ET:23 | 4 | 36111181841 | $463.95 | +core | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131182203 | $27.75 | Shop at ECS Tuning | |||||
| 06 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 07 | Screw-in valve RDC | 4 | 08/1998 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Hub cap wrench | 1 | 36131181948 | $4.20 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
