BMW-Styling II (Styl.31) for BMW 5 Series E39 528i (2000)

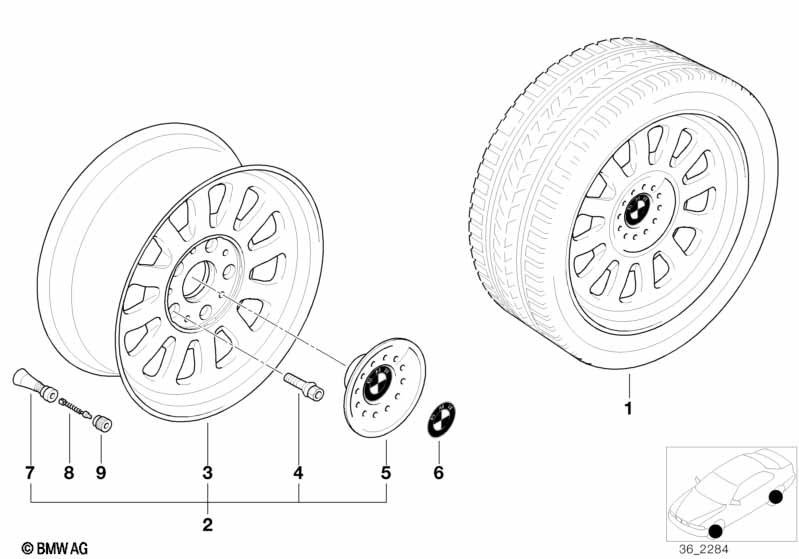

This BMW-Styling II (Styl.31) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Alloy rim casted | 7JX15 ET:20 | 4 | 36111093463 | $262.95 | Shop at ECS Tuning | ||||
| 03 | Alloy rim forged | 7JX15 ET:20 | 4 | 36111092277 | $229.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | D=163MM | 4 | 36136769109 | $13.50 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 07 | Screw-in valve RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
