BMW light alloy whl, M parallel spoke 37 for BMW 7 Series E38 740iL (1996)

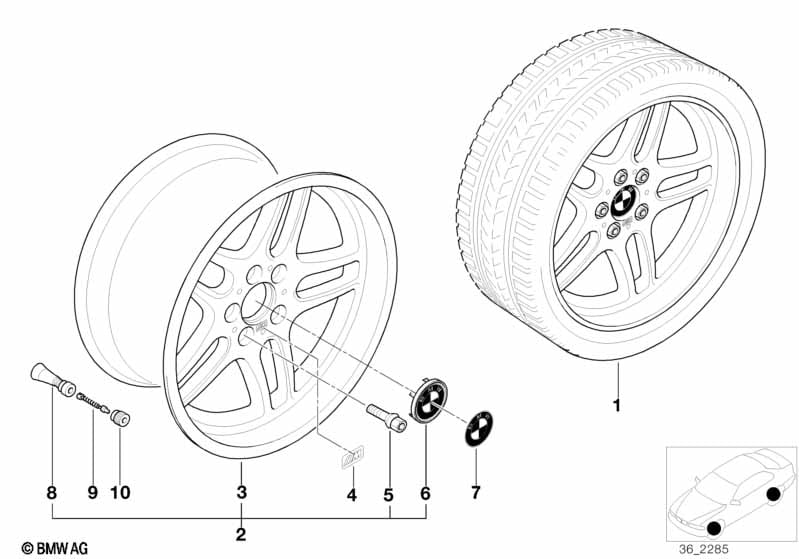

This BMW light alloy whl, M parallel spoke 37 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tyre pressure control (TPC) DIFFERENT TIRE SIZE FRONT AXLE 235/50ZR18 REAR AXLE 255/45ZR18 Tires Continental |
S265A=No |
|||||||||
| 01 | Wheel set, summer, LA blasted | 1 | 36110010493 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Light alloy rim polished | 8JX18 ET:13 | 2 | 36112229730 | $405.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Light alloy rim polished | 91/2JX18 ET:25 | 2 | 36112229731 | $462.95 | ENDED | Shop at ECS Tuning | |||
| 04 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 07 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
