Cross-spoke,composite wheel (styl.5) for BMW 5 Series E39 528i (2000)

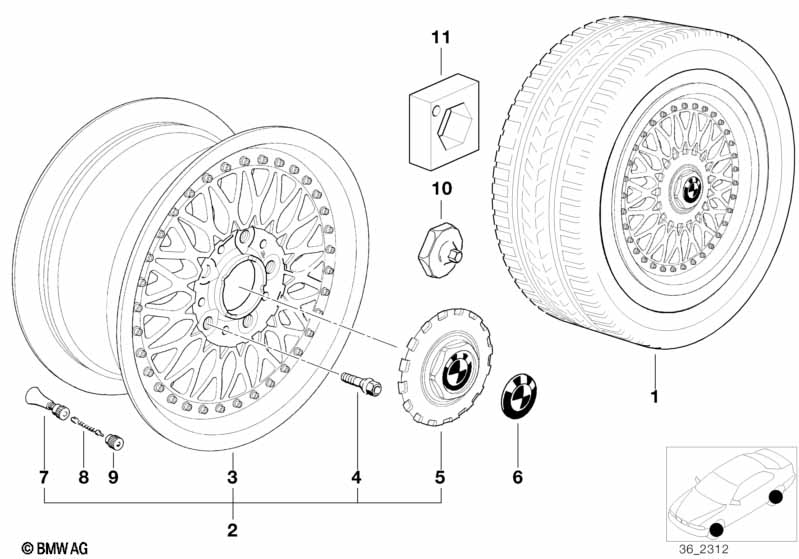

This Cross-spoke,composite wheel (styl.5) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Two-piece light alloy rim | 8JX17 ET:20 | 4 | 36111093531 | $522.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 9JX17 ET:26 | 2 | 36111093532 | $683.55 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 8JX18 ET:20 | 2 | 36111093533 | $559.00 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 9JX18 ET:24 | 2 | 36111093534 | $626.95 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131181068 | $22.50 | Shop at ECS Tuning | |||||
| 06 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 07 | Screw-in valve RDC | 4 | 08/1998 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
| 11 | Support f hub cap wrench | 1 | 36131093009 | $2.50 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
