BMW light-alloy wheel star spokes 44 for BMW 3 Series E46 323Ci (2000)

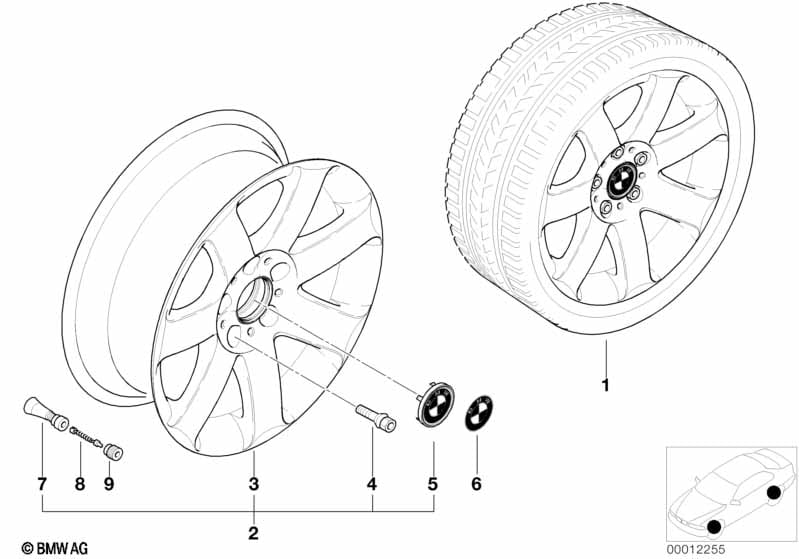

This BMW light-alloy wheel star spokes 44 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW light-alloy wheel star spokes 44 |
S290A=Yes |
||||||||
| 03 | Light alloy rim | 8JX17 ET:47 | 4 | 36111094506 | $318.95 | ENDED, TÜV 0017318 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | 16 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 07 | Screw-in valve RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
