BMW light alloy wheel, double spoke 51 for BMW 3 Series E46 318i (2001)

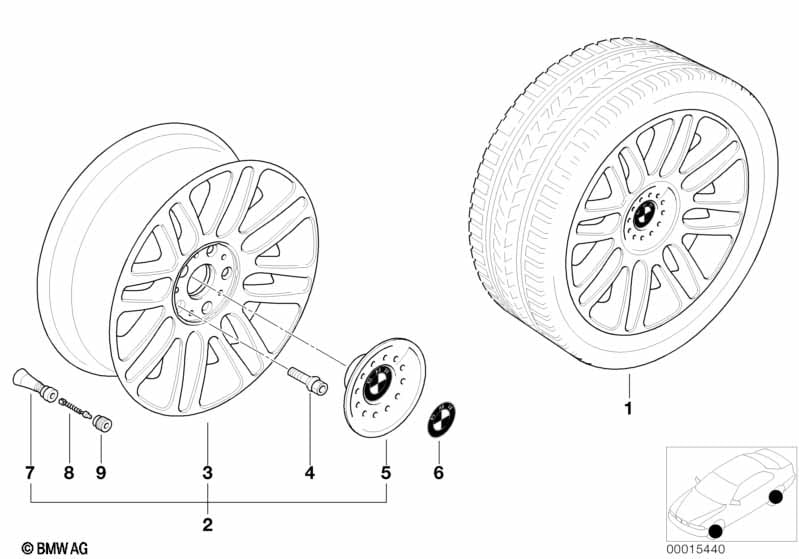

This BMW light alloy wheel, double spoke 51 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Light alloy rim | 8JX17 ET:47 | 4 | 85329408695 | ENDED, +core, TÜV 0017318 | Shop at ECS Tuning | ||||
| 03 | Light alloy rim | 8JX17 ET:47 | 4 | 36111095410 | $368.22 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | 16 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36131094877 | $19.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| only applies to Screw-on valve RDC |
||||||||||
| 07 | Screw-in valve RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
