Steel rim for BMW 1502-2002tii 1602 (1975)

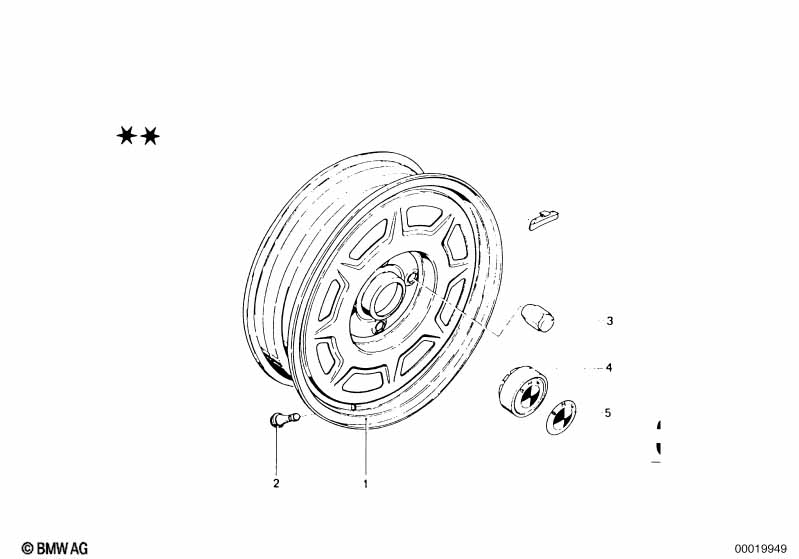

This Steel rim technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steel rim | 5JX13 ET:29 | X | 08/1973 | 07/1976 | 36111112631 | $113.51 | ENDED | Shop at ECS Tuning | |
| 02 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Wheel nut | 16 | 36131113131 | $4.02 | Shop at ECS Tuning | |||||
| 04 | Hub cap | 4 | 36131114180 | $21.20 | Shop at ECS Tuning | |||||
| 05 | Plaque with adhesive film | D=45MM | 4 | 36131181082 | $5.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Steel rim?
- This technical diagram illustrates the Steel rim within the Wheels group for the 1502-2002tii 1602 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Steel rim (Part #36111112631).
- Which models use the hardware listed in this Steel rim?
- The hardware and components featured in the Steel rim are specific to the 1502-2002tii 1602 produced during 1975. These technical specifications ensure that parts like the Steel rim (36111112631) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steel rim assembly?
- Each item in the Steel rim corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Steel rim by locating its position on the schematic, which then links to the official BMW part number 36111112631 for the Wheels section.
