Light alloy rim for BMW 1502-2002tii 1802 (1974)

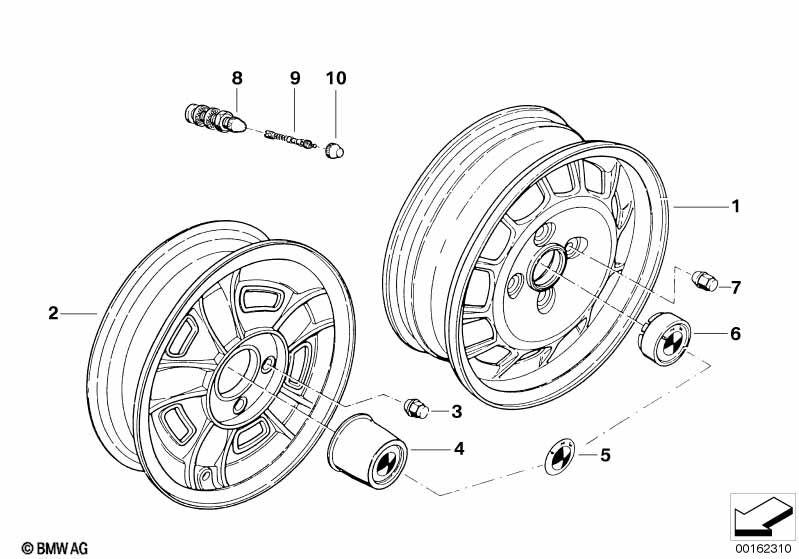

This Light alloy rim technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 5JX13 ET:28 | X | 08/1973 | 07/1977 | 36111114231 | ENDED | Shop at ECS Tuning | ||
| 05 | Plaque with adhesive film | D=45MM | 4 | 36131181082 | $5.78 | Shop at ECS Tuning | ||||
| 06 | Hub cap | 4 | 08/1973 | 07/1977 | 36131114180 | $21.20 | Shop at ECS Tuning | |||
| 07 | Wheel nut | 16 | 08/1973 | 07/1977 | 36131113132 | $6.00 | Shop at ECS Tuning | |||
| 08 | Screw-in valve | 4 | 36121119332 | $6.29 | Shop at ECS Tuning | |||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
