Light alloy rim for BMW 2.5CS-3.0CSL 3.0CS (1973)

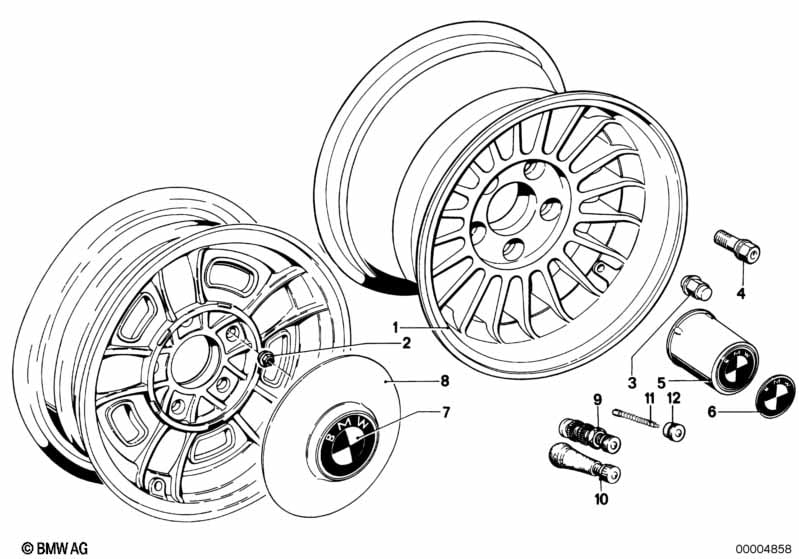

This Light alloy rim technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light alloy rim | 6JX14 ET:22 | 5 | 12/1968 | 11/1975 | 36111113085 | ENDED | Shop at ECS Tuning | ||
| 01 | Light alloy rim | 7JX14 ET:11 | 5 | 09/1972 | 11/1975 | 36111117425 | $394.00 | Shop at ECS Tuning | ||
| 02 | Wheel nut | 20 | 12/1968 | 11/1975 | 36111106017 | $5.07 | Shop at ECS Tuning | |||
| 03 | Wheel nut | 20 | 04/1971 | 11/1975 | 36131113132 | $6.00 | Shop at ECS Tuning | |||
| 05 | Hub cap | 4 | 04/1971 | 11/1975 | 36131114435 | $18.73 | Shop at ECS Tuning | |||
| 06 | Plaque with adhesive film | D=57MM | 4 | 04/1971 | 11/1975 | 36131181106 | $4.79 | Shop at ECS Tuning | ||
| 07 | Plaque with adhesive film | D=60MM | 4 | 12/1968 | 11/1975 | 36131181105 | $4.59 | Shop at ECS Tuning | ||
| 08 | Hub cap | 4 | 12/1968 | 11/1975 | 36131105834 | $78.80 | Shop at ECS Tuning | |||
| 09 | Screw-in valve | 4 | 36121119332 | $6.29 | Shop at ECS Tuning | |||||
| 10 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 11 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 12 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
