Tire pressure control (RDC) - ctrl unit for BMW 3 Series E46 328i (2000)

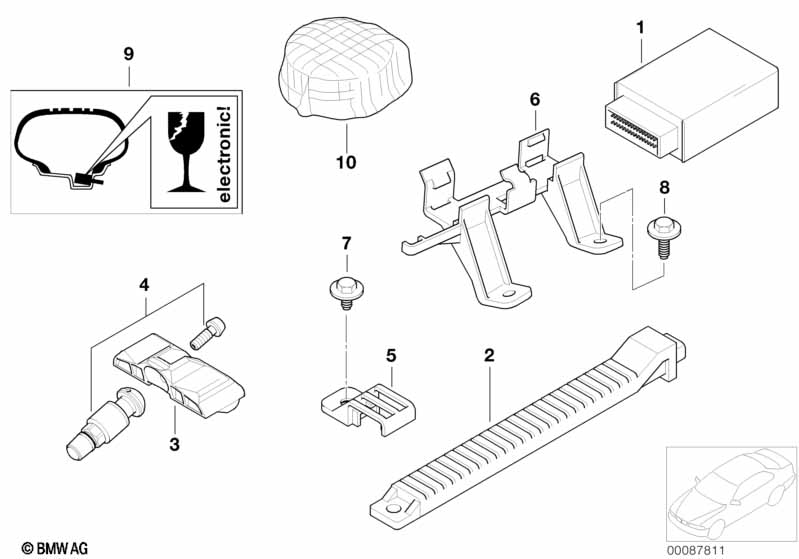

This Tire pressure control (RDC) - ctrl unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. |
|||||||||
| 01 | Control unit RDC | 433MHZ | 1 | 04/1999 | 09/2003 | 36146759023 | $256.94 | ENDED | Shop at ECS Tuning | |
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Control unit RDC | 315MHZ | 1 | 04/1999 | 09/2003 | 36146759022 | $256.94 | +core | Shop at ECS Tuning | |
| 02 | Reception antenna RDC | 433MHZ | 4 | 04/1999 | 09/2003 | 36118378753 | $40.53 | Shop at ECS Tuning | ||
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 02 | Reception antenna RDC | 315MHZ | 4 | 04/1999 | 09/2003 | 36146758601 | $40.53 | +core | Shop at ECS Tuning | |
| additionally required parts: Screw-on valve RDC |
||||||||||
| 03 | Wheel electronics module, RDC | 433MHZ | 4 | 04/1999 | 09/2003 | 36142360420 | Shop at ECS Tuning | |||
| for application, see illustration BMW LA wheels |
||||||||||
| 04 | Screw-in valve RDC | ORANGE | 4 | 04/1999 | 09/2003 | 36146792827 | $13.90 | Shop at ECS Tuning | ||
| 04 | Screw-in valve RDC | SCHWARZ | 4 | 04/1999 | 09/2003 | 36146792828 | $13.90 | Shop at ECS Tuning | ||
| 04 | Screw-in valve RDC | 4 | 04/1999 | 09/2003 | 36146792829 | $13.90 | Shop at ECS Tuning | |||
| 04 | Screw-in valve RDC | GRÜN | 4 | 04/1999 | 09/2003 | 36146792830 | Shop at ECS Tuning | |||
| 05 | Holder, reception antenna RDC | 3 | 04/1999 | 09/2001 | 36111095366 | $1.95 | Shop at ECS Tuning | |||
| 06 | Holder, reception antenna RDC frnt lft | 1 | 04/1999 | 09/2003 | 36116751241 | $2.55 | Shop at ECS Tuning | |||
| 07 | Hex bolt | TS5X17 SW8 D=16 | 6 | 04/1999 | 09/2003 | 07149126885 | $0.49 | Shop at ECS Tuning | ||
| 08 | Hex head screw | ST4,8X16-ZNS3 | 2 | 04/1999 | 09/2003 | 07119901299 | $0.25 | Shop at ECS Tuning | ||
| 09 | sign "TPC" tire pressure control | 4 | 04/1999 | 09/2003 | 36111096235 | $0.78 | Shop at ECS Tuning | |||
| 10 | "RDC" protective cover for tyres | 15" - 17" | 4 | 04/1999 | 09/2003 | 36139416536 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
