Wheel hub for BMW R 50 -69 R50 (1960)

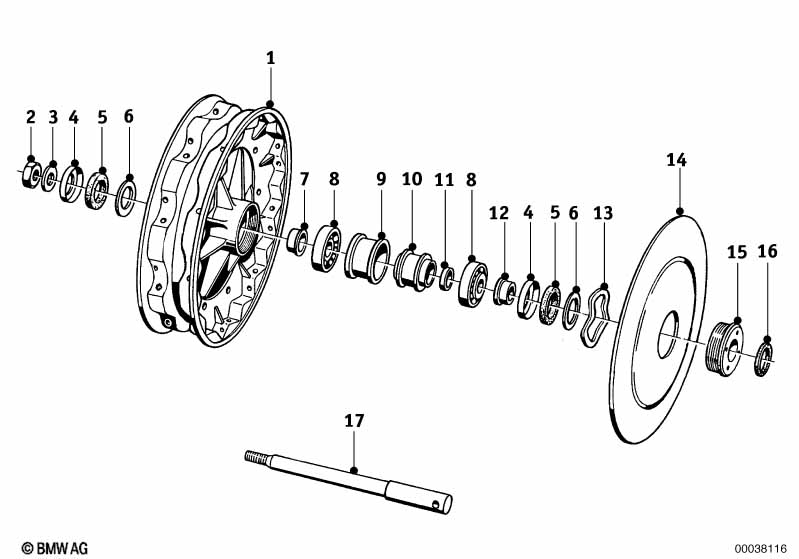

This Wheel hub technical drawing provides a detailed breakdown of the assembly for the R 50 -69 R50. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1960.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel hub | 2 | 36312030017 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex nut | M14X1,5 | 1 | 07119922155 | $2.54 | ENDED | Shop at ECS Tuning | |||
| Rear | ||||||||||
| 03 | Shim | 1 | 36313004378 | ENDED | Shop at ECS Tuning | |||||
| 04 | Ring cover | 4 | 36314038255 | $5.76 | Shop at ECS Tuning | |||||
| 05 | Feltring | 4 | 36314038259 | $2.14 | Shop at ECS Tuning | |||||
| 06 | Cover | 4 | 36314038267 | $2.74 | Shop at ECS Tuning | |||||
| 07 | Sleeve | 2 | 36314038241 | $21.09 | Shop at ECS Tuning | |||||
| 08 | Tapered roller bearing | 20X47X15.25 | 4 | 07119985010 | $27.30 | Shop at ECS Tuning | ||||
| 09 | Sleeve | RECHTS | 2 | 36314038229 | $21.09 | ENDED | Shop at ECS Tuning | |||
| 10 | Spacer tube | 2 | 36314038225 | $27.58 | Shop at ECS Tuning | |||||
| according to choice | ||||||||||
| 11 | Spacer | 7.00MM | 2 | 36314038330 | $5.33 | Shop at ECS Tuning | ||||
| 11 | Spacer | 7.05 MM | 2 | 36314038331 | $5.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer | 7,10MM | 2 | 36314038332 | $5.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer | 7,15MM | 2 | 36314038333 | $5.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer | 7.20 MM | 2 | 36314038334 | $5.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer | 7,25MM | 2 | 36314038335 | $5.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Spacer | 7.30MM | 2 | 36314038336 | $5.33 | Shop at ECS Tuning | ||||
| 11 | Spacer | 7.35MM | 2 | 36314038337 | $5.33 | Shop at ECS Tuning | ||||
| 11 | Spacer | 7,40MM | 2 | 36314038338 | $5.33 | Shop at ECS Tuning | ||||
| 12 | Sleeve | LINKS | 2 | 36314038243 | $18.02 | ENDED | Shop at ECS Tuning | |||
| 13 | Spring washer | 2 | 36314038263 | $6.65 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hub cap | 2 | 36314038275 | $68.35 | Shop at ECS Tuning | |||||
| according to choice | ||||||||||
| 15 | Cover lid | 2 | 36314038271 | ENDED | Shop at ECS Tuning | |||||
| 15 | Cover lid | 2 | 36314038272 | $30.64 | Shop at ECS Tuning | |||||
| 16 | Gasket ring | 2 | 36314038230 | $14.15 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover lid | 2 | 36314038272 | $30.64 | Shop at ECS Tuning | |||||
| 17 | Quick-release axle | VORNE | 1 | 36312060227 | ENDED | Shop at ECS Tuning | ||||
| 17 | Quick-release axle | HINTEN | 1 | 36313004368 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R 50 -69 R50 Wheel hub?
- This technical diagram illustrates the Wheel hub within the Wheels and tires group for the R 50 -69 R50 produced during 1960. It provides a detailed exploded view of the components, identifying key parts such as the Wheel hub (Part #36312030017).
- Which models use the hardware listed in this Wheel hub?
- The hardware and components featured in the Wheel hub are specific to the R 50 -69 R50 produced during 1960. These technical specifications ensure that parts like the Wheel hub (36312030017) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wheel hub assembly?
- Each item in the Wheel hub corresponds to the numbered list below the illustration. For the R 50 -69 R50, you can identify the Wheel hub by locating its position on the schematic, which then links to the official BMW part number 36312030017 for the Wheels and tires section.
