BMW LA wheel, star spoke 69 for BMW 5 Series E39 528i (2000)

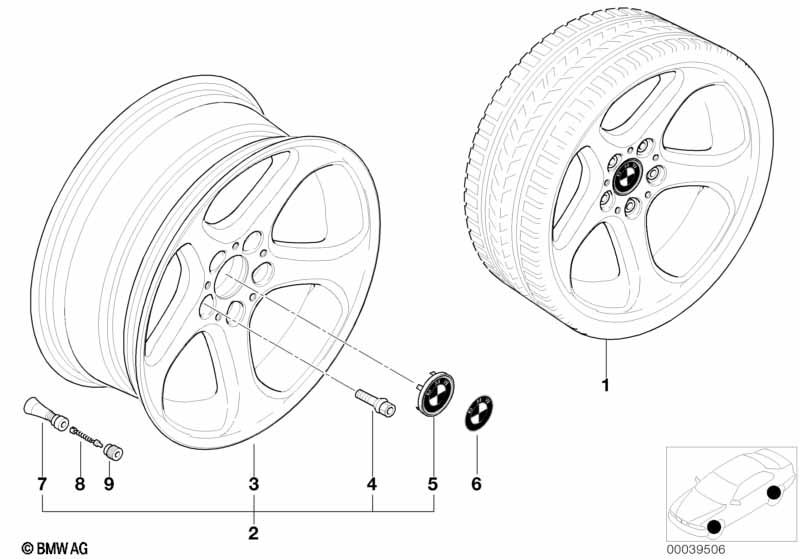

This BMW LA wheel, star spoke 69 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tyre pressure control (TPC) DIFFERENT TIRE SIZE FRONT AXLE 235/40ZR18 REAR AXLE 265/35ZR18 Tires Dunlop |
S265A=No |
|||||||||
| 01 | Set complete alloy wheels summer | 1 | 03/1996 | 36110016157 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) DIFFERENT TIRE SIZE FRONT AXLE 235/40ZR18 REAR AXLE 265/35ZR18 Tires Bridgestone |
S265A=No |
|||||||||
| 01 | Set complete alloy wheels summer | 1 | 03/1996 | 36119416277 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) and Wheel electronics module, RDC 433MHZ DIFFERENT TIRE SIZE FRONT AXLE 235/40ZR18 REAR AXLE 265/35ZR18 Tires Bridgestone |
S265A=Yes =Yes |
|||||||||
| 01 | RDC Compl. alloy wheel set summer | 1 | 08/1998 | 36110004187 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 8JX18 ET:20 | 2 | 03/1996 | 36119416242 | $405.95 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Light alloy rim | 9JX18 ET:24 | 2 | 03/1996 | 36119416243 | $444.95 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Light alloy rim | 8JX18 ET:20 | 2 | 36111096233 | $416.23 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Light alloy rim | 9JX18 ET:24 | 2 | 36111096234 | $442.89 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 07 | Screw-in valve RDC | GRÜN | 4 | 36146792830 | Shop at ECS Tuning | |||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
