BMW light alloy whl, M parallel spoke 37 for BMW 5 Series E39 528i (2000)

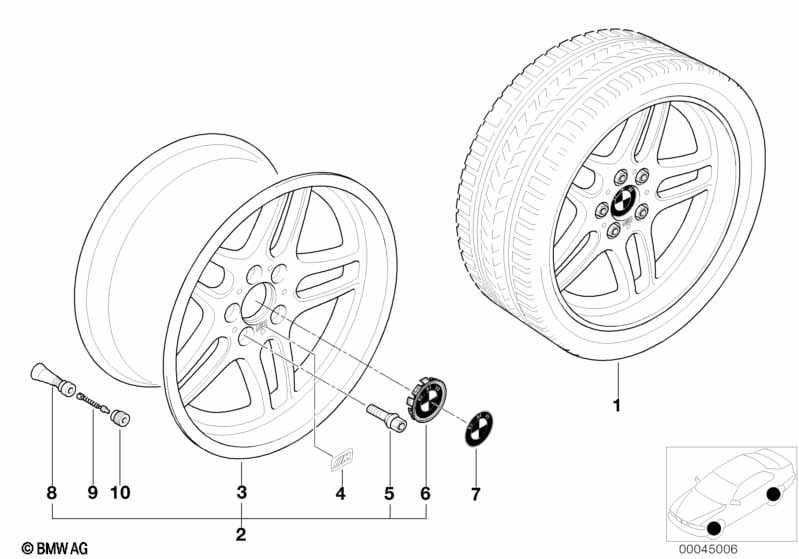

This BMW light alloy whl, M parallel spoke 37 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tyre pressure control (TPC) DIFFERENT TIRE SIZE FRONT AXLE 235/40ZR18 REAR AXLE 265/35ZR18 Tires Dunlop |
S265A=No |
|||||||||
| 01 | Set complete alloy wheels summer | 1 | 36110009765 | $4570.02 | ENDED | Shop at ECS Tuning | ||||
| 03 | Alloy rim forged | 8JX18 ET:20 | 2 | 36112229635 | $523.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Alloy rim forged | 9JX18 ET:24 | 2 | 36112229640 | $557.00 | +core | Shop at ECS Tuning | |||
| 04 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 06 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 07 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
