BMW alloy wheel, M double spoke 68 for BMW 3 Series E46 318i (2004)

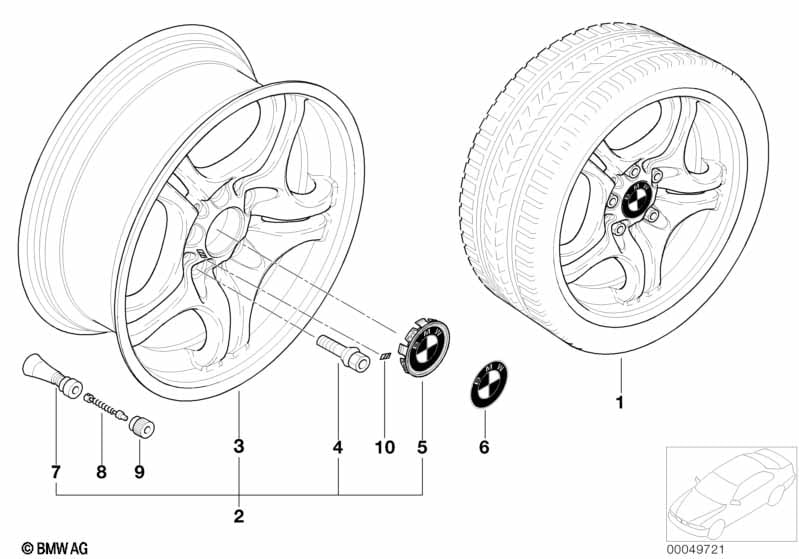

This BMW alloy wheel, M double spoke 68 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel, Individual |
S788A=Yes |
||||||||
| 03 | Two-piece light alloy rim | 71/2JX17 ET:41 | 2 | 36112229180 | $601.00 | TÜV 0006869 | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 81/2JX17 ET:50 | 2 | 36112229135 | $664.00 | ENDED, TÜV 0006869 | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i BMW alloy wheel, M double spoke 68?
- This technical diagram illustrates the BMW alloy wheel, M double spoke 68 within the Wheels group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Two-piece light alloy rim (Part #36112229180).
- Which models use the hardware listed in this BMW alloy wheel, M double spoke 68?
- The hardware and components featured in the BMW alloy wheel, M double spoke 68 are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Two-piece light alloy rim (36112229180) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW alloy wheel, M double spoke 68 assembly?
- Each item in the BMW alloy wheel, M double spoke 68 corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Two-piece light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36112229180 for the Wheels section.
