BMW Composite wheel, star spoke 77 for BMW 5 Series E39 523i (2000)

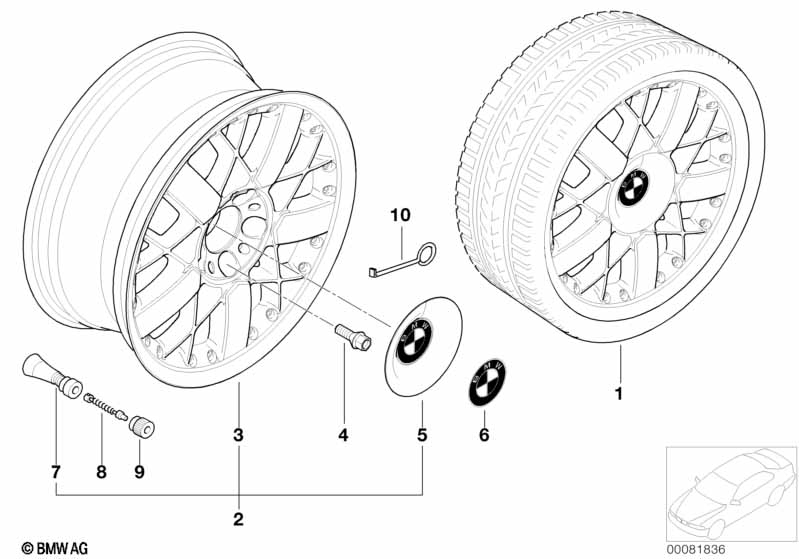

This BMW Composite wheel, star spoke 77 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Tyre pressure control (TPC) Mixed tyres Front axle 235/40 ZR18 Rear axle 265/35 ZR18 Tires Dunlop |
S265A=No |
|||||||||
| 01 | Set complete alloy wheels summer | 1 | 03/1996 | 36110006591 | ENDED | Shop at ECS Tuning | ||||
| with EH2 Hump | ||||||||||
| 03 | Two-piece light alloy rim | 8JX18 ET:20 | 2 | 36116751360 | $644.34 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 9JX18 ET:24 | 2 | 36116751361 | $687.05 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | 4 | 36136751365 | $22.50 | +core | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 07 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 07 | Screw-in valve RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 08 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 09 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
