Steel rim styl.12 for BMW 3 Series E46 318td (2004)

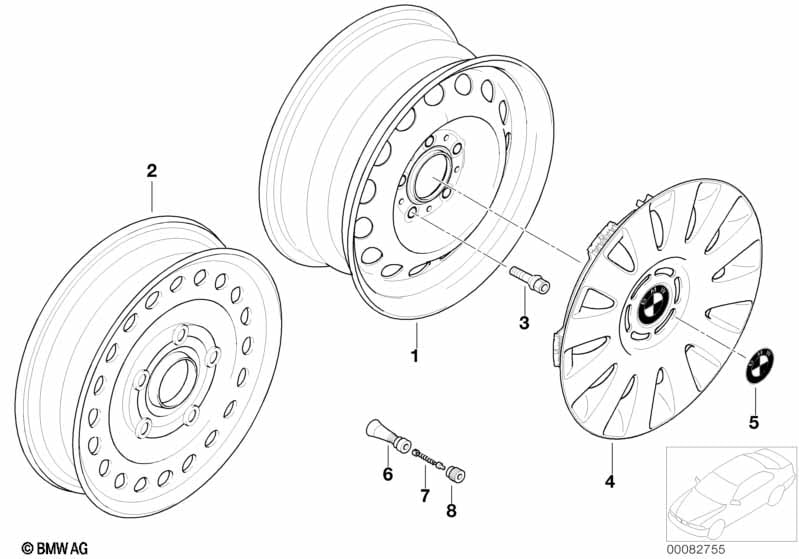

This Steel rim styl.12 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steel rim schwarz | 61/2JX15 ET:42 | 4 | 36111095004 | $90.00 | +core | Shop at ECS Tuning | |||
| 01 | Steel rim schwarz | 7JX16 ET:47 | 4 | 36111095013 | $105.95 | +core | Shop at ECS Tuning | |||
| 02 | Compact spare wheel, steel, black | 3.50BX15 ET:36 | 1 | 36111095069 | $63.00 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Compact spare wheel, steel, black | 3.0BX16 ET:32 | 1 | 36116750006 | $43.75 | +core | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel cover | 15" | 4 | 36136768519 | $37.00 | Shop at ECS Tuning | ||||
| 04 | Wheel cover | 16" | 4 | 36136768523 | $37.00 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 06 | Screw-in valve RDC | GRÜN | 4 | 36146792830 | Shop at ECS Tuning | |||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 08 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
