BMW compound wheel M cross spoke 101 for BMW 3 Series E46 330d (2001)

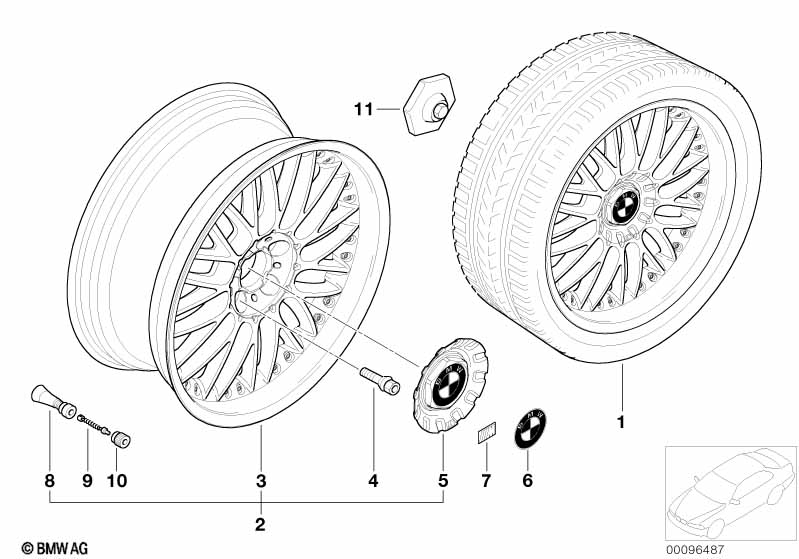

This BMW compound wheel M cross spoke 101 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 18'' LAW M Cross Spoke 101 |
SZQYA=Yes |
||||||||
| 03 | Two-piece light alloy rim | 8JX18 ET:47 | 2 | 36116759896 | $780.42 | ENDED | Shop at ECS Tuning | |||
| 03 | Two-piece light alloy rim | 8 1/2JX18 ET:50 | 2 | 36116759897 | $816.46 | ENDED | Shop at ECS Tuning | |||
| 04 | Wheel bolt black | M12X1,5 | 16 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Hub cap | D=159.6MM | 4 | 36136757372 | $43.25 | Shop at ECS Tuning | ||||
| 06 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 07 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| 08 | Rubber valve | L=61,5MM | 4 | 36121182759 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 08 | Screw-in valve RDC | GELB | 4 | 36146792831 | Shop at ECS Tuning | |||||
| 09 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| only applies to Screw-on valve RDC |
||||||||||
| 10 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 11 | Hub cap wrench | SW=17MM | 1 | 36131180626 | $8.82 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
