BMW light alloy wheel, cross spoke 144 for BMW 5 Series E61 LCI 520d (2010)

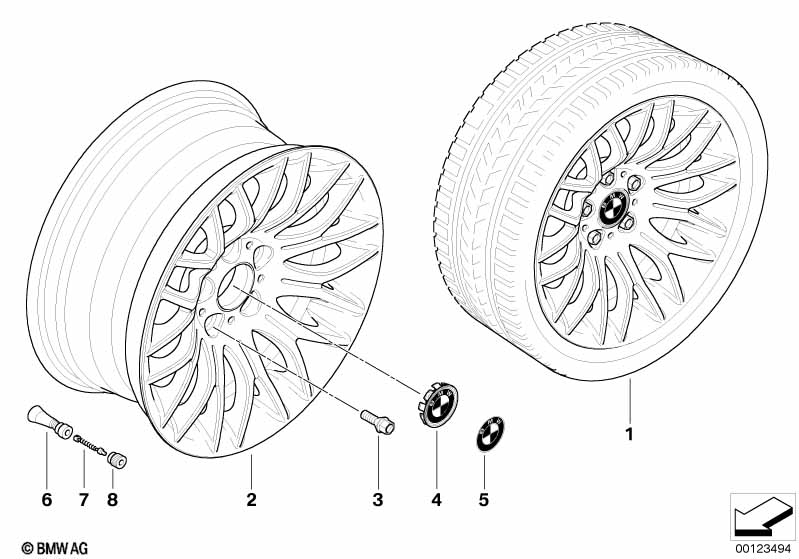

This BMW light alloy wheel, cross spoke 144 technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 17" LAW Cross Spoke 144 |
SZL3A=Yes |
||||||||
| 02 | Light alloy rim | 8JX17 ET:20 | 4 | 36116763828 | $409.55 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 520d BMW light alloy wheel, cross spoke 144?
- This technical diagram illustrates the BMW light alloy wheel, cross spoke 144 within the Wheels group for the 5 Series E61 LCI 520d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116763828).
- Which models use the hardware listed in this BMW light alloy wheel, cross spoke 144?
- The hardware and components featured in the BMW light alloy wheel, cross spoke 144 are specific to the 5 Series E61 LCI 520d produced during 2010. These technical specifications ensure that parts like the Light alloy rim (36116763828) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW light alloy wheel, cross spoke 144 assembly?
- Each item in the BMW light alloy wheel, cross spoke 144 corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 520d, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116763828 for the Wheels section.
