Winter traction aid for BMW MINI F56 JCW (2019)

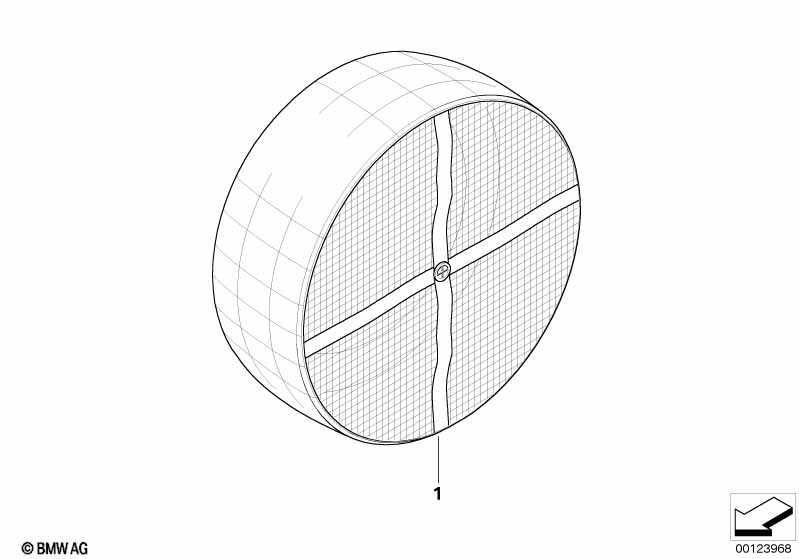

This Winter traction aid technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Only suitable for tire size 195/55 R16 205/45 R17 205/40 R18 |
||||||||||
| 01 | Winter traction aid | 1 | 36110154477 | $95.50 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 JCW Winter traction aid?
- This technical diagram illustrates the Winter traction aid within the Wheels group for the MINI F56 JCW produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Winter traction aid (Part #36110154477).
- Which models use the hardware listed in this Winter traction aid?
- The hardware and components featured in the Winter traction aid are specific to the MINI F56 JCW produced during 2019. These technical specifications ensure that parts like the Winter traction aid (36110154477) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Winter traction aid assembly?
- Each item in the Winter traction aid corresponds to the numbered list below the illustration. For the MINI F56 JCW, you can identify the Winter traction aid by locating its position on the schematic, which then links to the official BMW part number 36110154477 for the Wheels section.
