Compact spare wheel, steel, black for BMW 5 Series E60 550i (2007)

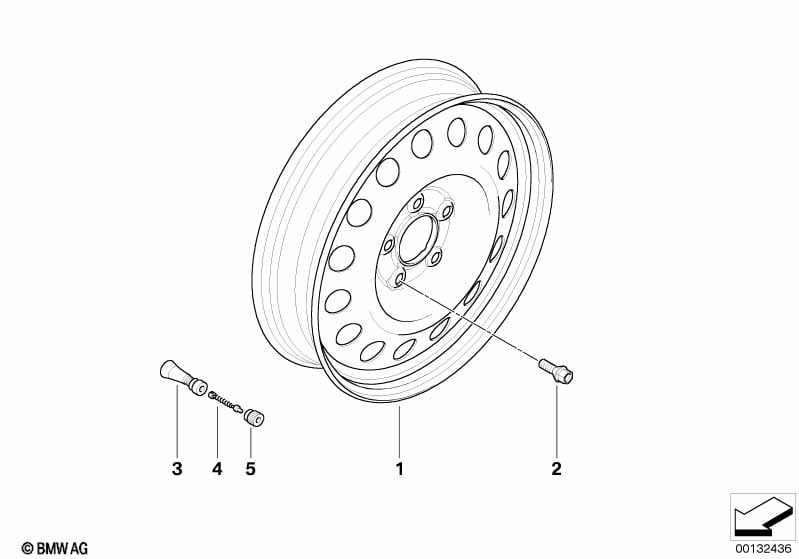

This Compact spare wheel, steel, black technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Compact spare wheel, steel, black | 4BX17 ET:18 | 1 | 36116758778 | $66.00 | +core | Shop at ECS Tuning | |||
| 02 | Wheel bolt black | M12X1,5 | 5 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 03 | Rubber valve | L=42,5MM | 1 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 04 | Valve | 1 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 05 | Valve caps | 1 | 36121120779 | $0.60 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
