BMW LA wheel, ellipsoid styling 121 for BMW 6 Series E64 LCI 650i (2010)

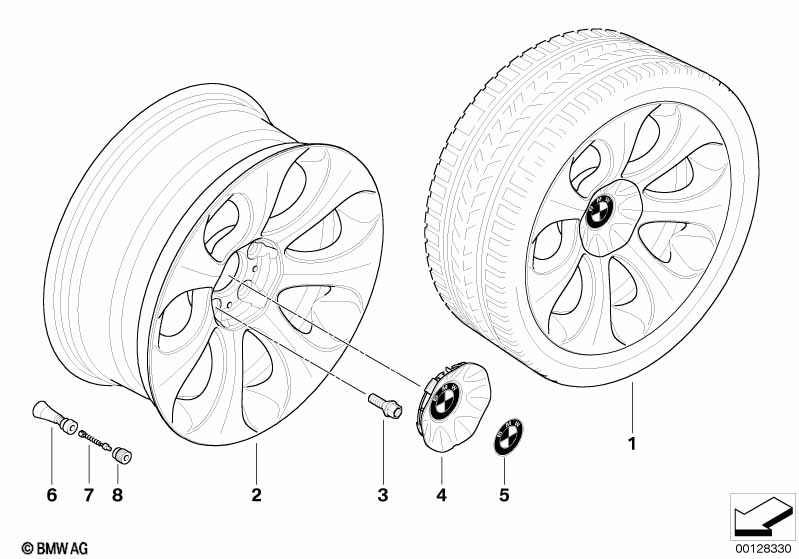

This BMW LA wheel, ellipsoid styling 121 technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with RSC = Runflat-System-Component |
=Yes |
|||||||||
| 02 | Light alloy rim | 81/2JX19 ET:14 | 2 | 36116760629 | $512.00 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 9JX19 ET:14 | 2 | 09/2007 | 36116781219 | $520.00 | ENDED | Shop at ECS Tuning | ||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Hub cap | D=155.3MM | 4 | 36136763117 | $17.25 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped with adhesive film | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 LCI 650i BMW LA wheel, ellipsoid styling 121?
- This technical diagram illustrates the BMW LA wheel, ellipsoid styling 121 within the Wheels group for the 6 Series E64 LCI 650i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116760629).
- Which models use the hardware listed in this BMW LA wheel, ellipsoid styling 121?
- The hardware and components featured in the BMW LA wheel, ellipsoid styling 121 are specific to the 6 Series E64 LCI 650i produced during 2010. These technical specifications ensure that parts like the Light alloy rim (36116760629) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel, ellipsoid styling 121 assembly?
- Each item in the BMW LA wheel, ellipsoid styling 121 corresponds to the numbered list below the illustration. For the 6 Series E64 LCI 650i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116760629 for the Wheels section.
