Alloy rim casted styl.trx-2 for BMW 5 Series E28 535i (1981)

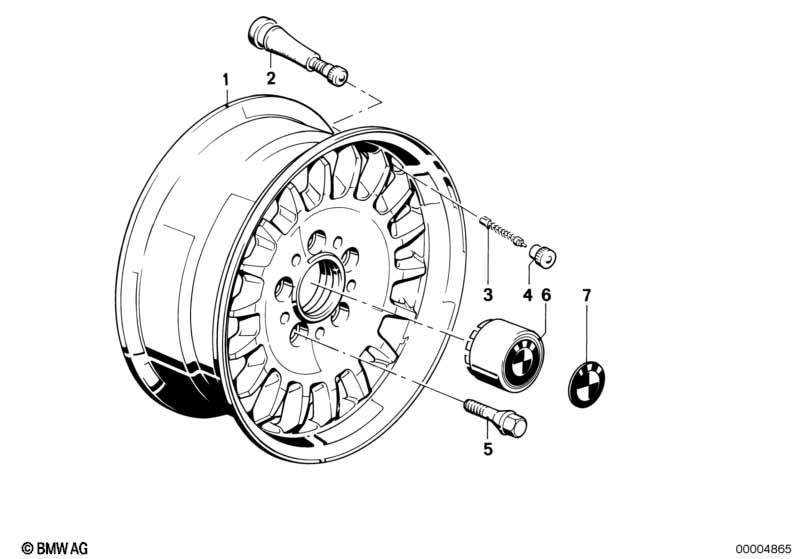

This Alloy rim casted styl.trx-2 technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY FOR WINTER TYRES | |||||||||
| 01 | Light alloy rim | 61/2JX14H2 | 4 | 36113908134 | Shop at ECS Tuning | |||||
| 02 | Rubber valve | 4 | 36122904161 | Shop at ECS Tuning | ||||||
| 03 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Wheel bolt black | X | 36132902779 | Shop at ECS Tuning | ||||||
| 06 | Hub cap | 4 | 36131117649 | $15.75 | Shop at ECS Tuning | |||||
| 07 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
