BMW LA wheel/double spoke 178 for BMW 1 Series E87 LCI 123d (2011)

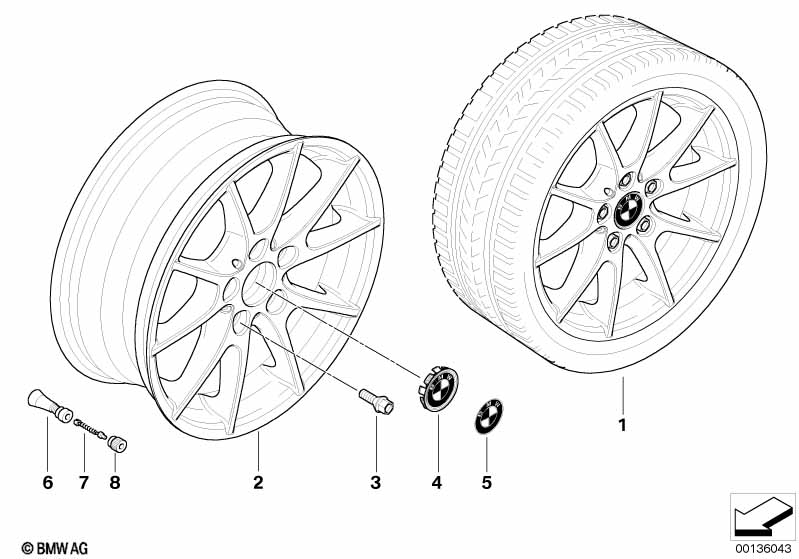

This BMW LA wheel/double spoke 178 technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 17" LAW Double Spoke 178 |
SZL2A=Yes |
||||||||
| 02 | Light alloy rim | 7JX17 ET:47 | 4 | 36116768558 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 7JX17 ET:47 | 4 | 36116775624 | $360.20 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Light alloy rim, black | 7X17" ET:47 | 4 | 36116787975 | ENDED | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 7 1/2JX17 ET:47 | 2 | 36116768559 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 71/2JX17 ET:47 | 2 | 36116775625 | $388.22 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Light alloy rim, black | 71/2X17" ET:47 | 2 | 36116787976 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
