BMW LA wheel/double spoke 182 for BMW 1 Series E88 118d (2013)

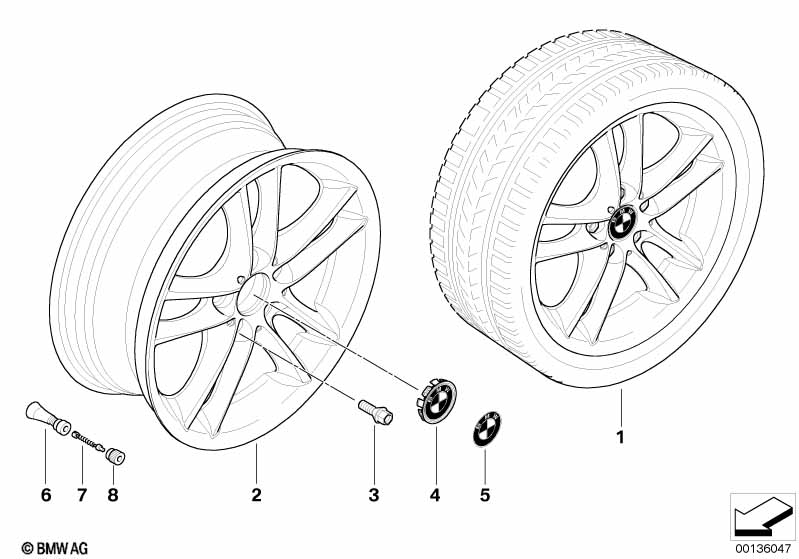

This BMW LA wheel/double spoke 182 technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 18" LAW Double Spoke 182 |
SZL5A=Yes |
||||||||
| 02 | Light alloy rim | 7 1/2JX18 ET:49 | 2 | 36116775632 | $417.58 | ENDED, TÜV 2157781 | Shop at ECS Tuning | |||
| 02 | Light alloy rim, black | 7 1/2JX18 ET:49 | 2 | 36116786887 | $437.58 | ENDED, TÜV 2157781 | Shop at ECS Tuning | |||
| 02 | Light alloy rim | 8 1/2JX18 ET:52 | 2 | 36116777782 | $457.58 | ENDED, TÜV 2157781 | Shop at ECS Tuning | |||
| 02 | Light alloy rim, black | 8 1/2JX18 ET:52 | 2 | 36116786888 | $480.28 | ENDED, TÜV 2157781 | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
