Steel rim styl.12 for BMW 3 Series E46 330Cd (2006)

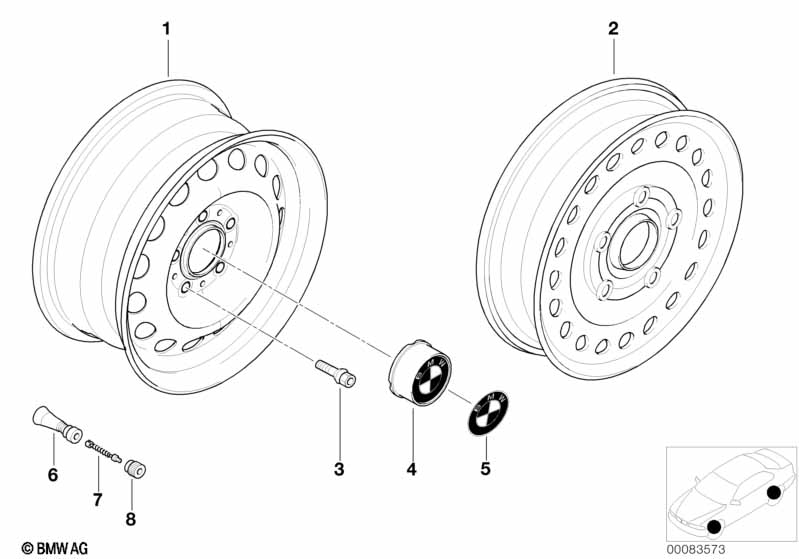

This Steel rim styl.12 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY FOR WINTER TYRES Important! not suitable for Ventilated-perforated brake disk |
||||||||||
| 01 | Steel rim silber | 7JX17 ET:47 | 4 | 36116750254 | $111.95 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Compact spare wheel, steel, black | 3.50BX17 ET:30 | 1 | 36116750007 | $61.00 | +core | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Hub cap | D=104MM | 4 | 36131179141 | $17.25 | ENDED | Shop at ECS Tuning | |||
| 05 | BMW plaque with adhesive film | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) ONLY FOR WINTER TYRES Important! not suitable for Ventilated-perforated brake disk |
S265A=Yes |
|||||||||
| 06 | Screw-in valve RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| ONLY FOR WINTER TYRES Important! not suitable for Ventilated-perforated brake disk |
||||||||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
