BMW light alloy wheel, spider spoke 159 for BMW 3 Series E90 LCI 325i (2012)

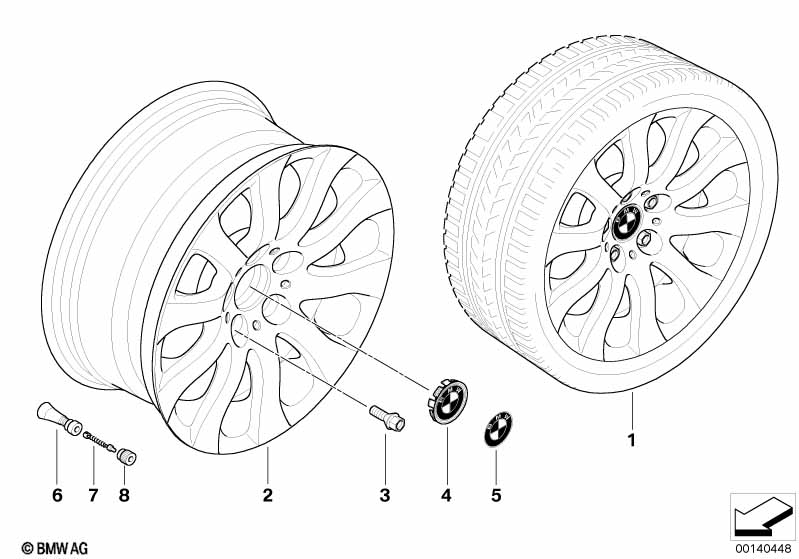

This BMW light alloy wheel, spider spoke 159 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW light alloy wheel, spider spoke 159 |
S2CZA=Yes |
||||||||
| 02 | Light alloy rim | 8JX17 ET:34 | 4 | 36116775597 | $354.95 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 16 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
