BMW Composite wheel, star spoke 179 for BMW 3 Series E90 318i (2008)

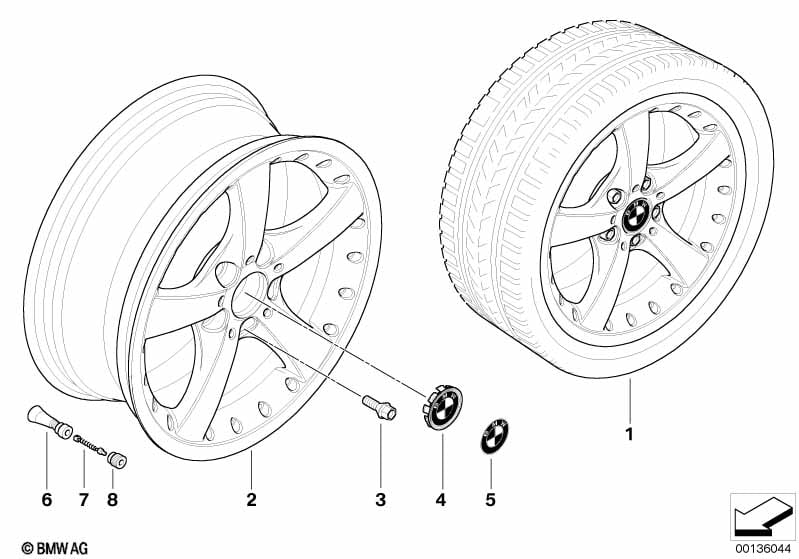

This BMW Composite wheel, star spoke 179 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Star spoke composite 179, 19-inch |
SZLHA=Yes |
||||||||
| 02 | Two-piece light alloy rim | 8JX19 ET:37 | 2 | 36116769568 | $730.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Two-piece light alloy rim | 8JX19 ET:37 | 2 | 36116775603 | $883.48 | ENDED | Shop at ECS Tuning | |||
| 02 | Two-piece light alloy rim | 9JX19 ET:39 | 2 | 36116775604 | $927.32 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=61,5MM | 4 | 36121182759 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i BMW Composite wheel, star spoke 179?
- This technical diagram illustrates the BMW Composite wheel, star spoke 179 within the Wheels group for the 3 Series E90 318i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Two-piece light alloy rim (Part #36116769568).
- Which models use the hardware listed in this BMW Composite wheel, star spoke 179?
- The hardware and components featured in the BMW Composite wheel, star spoke 179 are specific to the 3 Series E90 318i produced during 2008. These technical specifications ensure that parts like the Two-piece light alloy rim (36116769568) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW Composite wheel, star spoke 179 assembly?
- Each item in the BMW Composite wheel, star spoke 179 corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Two-piece light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116769568 for the Wheels section.
