BMW alloy wheel, M double spoke 184 for BMW 5 Series E60 550i (2007)

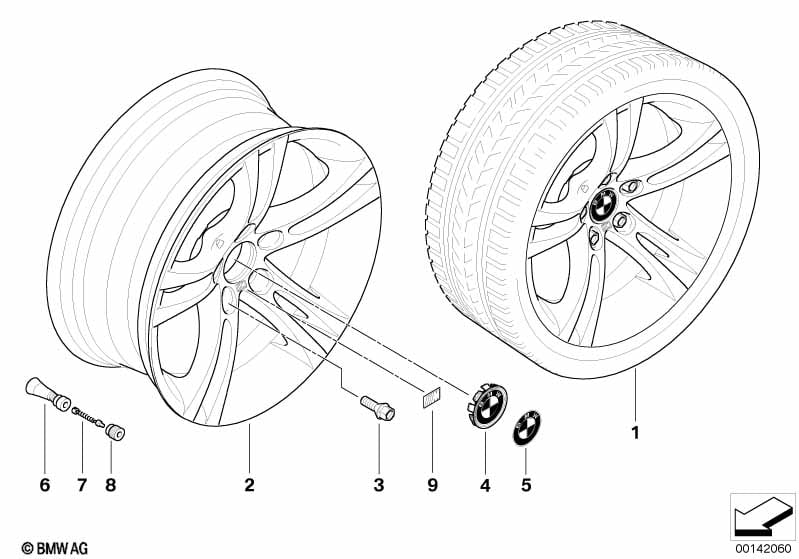

This BMW alloy wheel, M double spoke 184 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with 18" LAW M Double Spoke 184 |
SZLIA=Yes |
||||||||
| 02 | Light alloy rim | 8JX18 ET:20 | 4 | 36112282991 | $525.63 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 06 | Screw-in valve RDC | GELB | 4 | 36146792831 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with National version Canada and Tire pressure display |
L838A=Yes S2VBA=No |
|||||||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with National version Canada and Tire pressure display |
L838A=Yes S2VBA=Yes |
|||||||||
| 06 | Screw-in valve RDC | GELB | 4 | 36146792831 | Shop at ECS Tuning | |||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=Yes |
|||||||||
| 08 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| For vehicles with Tire pressure display |
S2VBA=No |
|||||||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with National version Canada and Tire pressure display |
L838A=Yes S2VBA=No |
|||||||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| For vehicles with National version Canada and Tire pressure display |
L838A=Yes S2VBA=Yes |
|||||||||
| 08 | Valve caps RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 09 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
