BMW alloy wheel M V-spoke 217 for BMW 1 Series E87 LCI 118i (2011)

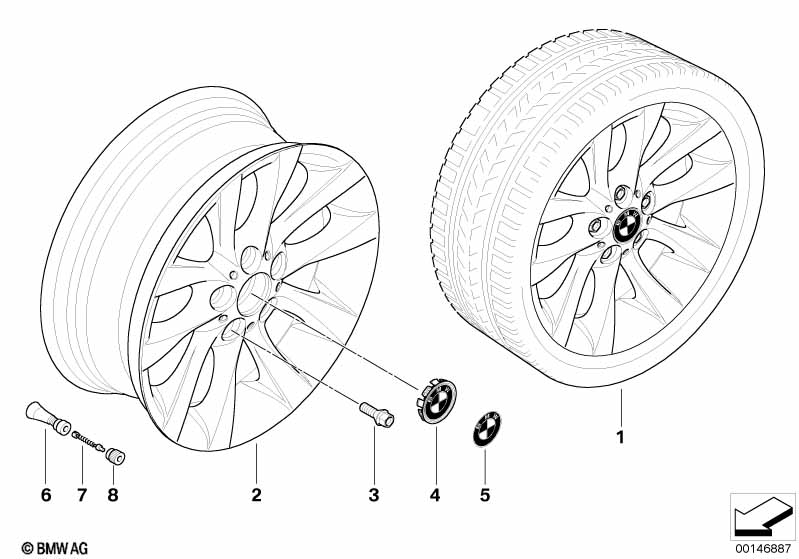

This BMW alloy wheel M V-spoke 217 technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW alloy wheel M V-spoke 217 |
S2KFA=Yes |
||||||||
| 02 | Light alloy rim | 71/2JX18 ET:49 | 2 | 36116775634 | $361.95 | TÜV 2157781 | Shop at ECS Tuning | |||
| 02 | Light alloy rim | 8JX18 ET:49 | 2 | 36116775635 | +core | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 81/2JX18 ET:52 | 2 | 36116779380 | $396.95 | TÜV 2157781 | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- TÜV = Technischer Überwachungsverein (Neutral technical surveillance organiz.)
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
