BMW alloy wheel, M double spoke 207 for BMW 1 Series E81 118i (2011)

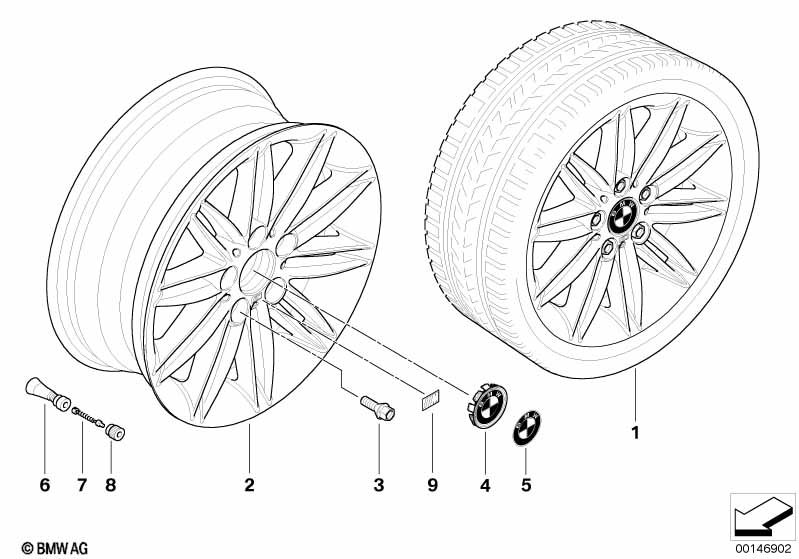

This BMW alloy wheel, M double spoke 207 technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW alloy wheel, M double spoke 207 |
S2MGA=Yes |
||||||||
| 02 | Light alloy rim | 7JX17 ET:47 | 4 | 36118036937 | $374.95 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 71/2JX17 ET:47 | 2 | 36118036938 | $403.95 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | BMW insignia stamped/painted | 4 | 36136767547 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 09 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
