BMW alloy wheel, M double spoke 208 for BMW 1 Series E88 120i (2013)

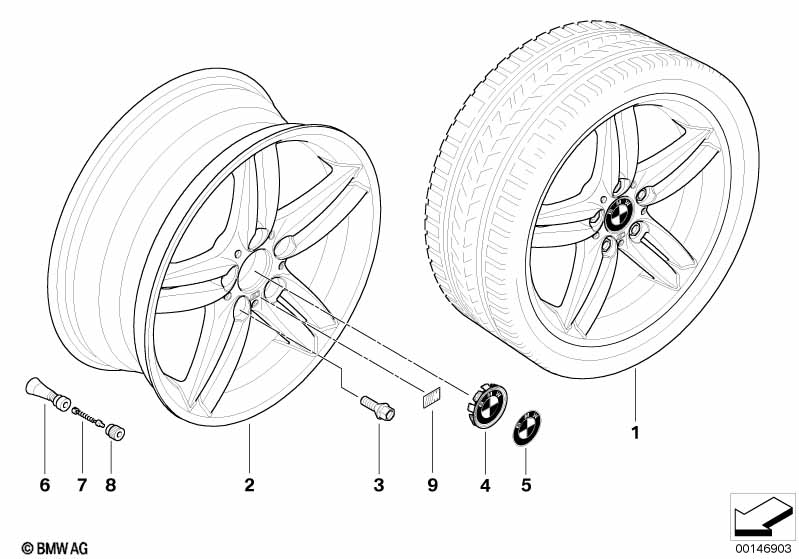

This BMW alloy wheel, M double spoke 208 technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW alloy wheel, M double spoke 208 |
S2MHA=Yes |
||||||||
| 02 | Light alloy rim | 71/2JX18 ET:49 | 2 | 36118036939 | $433.95 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 81/2JX18 ET:52 | 2 | 36107839305 | Shop at ECS Tuning | |||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 09 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 120i BMW alloy wheel, M double spoke 208?
- This technical diagram illustrates the BMW alloy wheel, M double spoke 208 within the Wheels group for the 1 Series E88 120i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36118036939).
- Which models use the hardware listed in this BMW alloy wheel, M double spoke 208?
- The hardware and components featured in the BMW alloy wheel, M double spoke 208 are specific to the 1 Series E88 120i produced during 2013. These technical specifications ensure that parts like the Light alloy rim (36118036939) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW alloy wheel, M double spoke 208 assembly?
- Each item in the BMW alloy wheel, M double spoke 208 corresponds to the numbered list below the illustration. For the 1 Series E88 120i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36118036939 for the Wheels section.
