BMW LA wheel, star spoke 189 for BMW 3 Series E90 LCI 320d (2009)

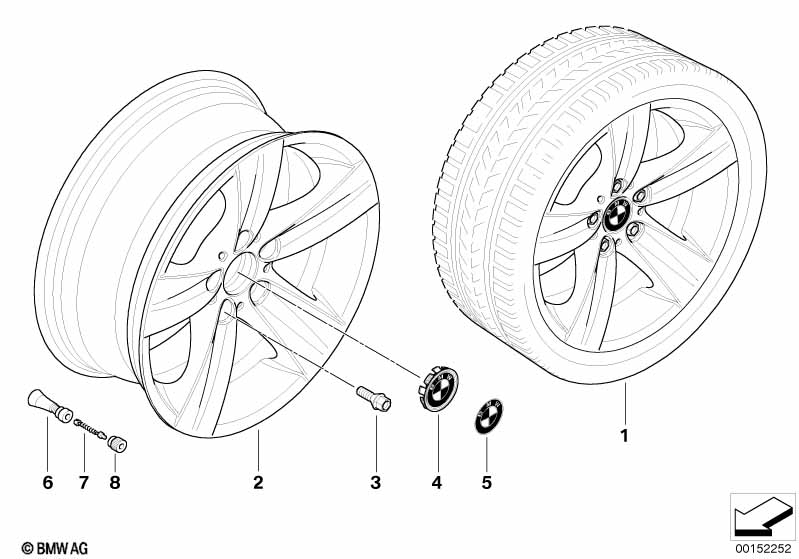

This BMW LA wheel, star spoke 189 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel, star spoke 189 |
S2C6A=Yes |
||||||||
| 02 | Light alloy rim | 8JX18 ET:34 | 2 | 36116768858 | $379.95 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 81/2JX18 ET:37 | 2 | 36116768859 | $396.95 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d BMW LA wheel, star spoke 189?
- This technical diagram illustrates the BMW LA wheel, star spoke 189 within the Wheels group for the 3 Series E90 LCI 320d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116768858).
- Which models use the hardware listed in this BMW LA wheel, star spoke 189?
- The hardware and components featured in the BMW LA wheel, star spoke 189 are specific to the 3 Series E90 LCI 320d produced during 2009. These technical specifications ensure that parts like the Light alloy rim (36116768858) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel, star spoke 189 assembly?
- Each item in the BMW LA wheel, star spoke 189 corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116768858 for the Wheels section.
