BMW LA wheel Individual w. V spokes 228 for BMW 3 Series E90 LCI 325i (2011)

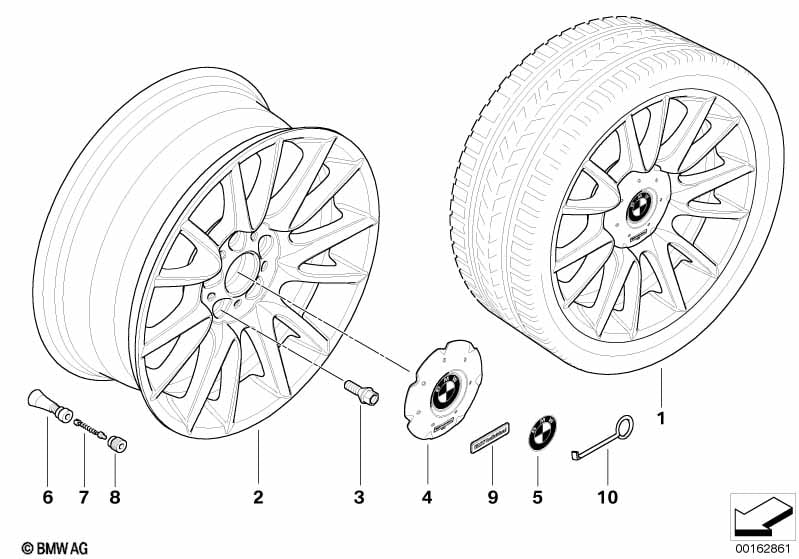

This BMW LA wheel Individual w. V spokes 228 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Light alloy rim | 8JX19 ET:37 | 2 | 36118037351 | $493.95 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 9JX19 ET:39 | 2 | 36118037352 | $520.00 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Hub cap | D=171.55MM | 4 | 36137849420 | Shop at ECS Tuning | |||||
| 05 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 09 | BMW Individual badge | 4 | 36137897226 | $5.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning |
