BMW light alloy wheel, V-spoke 245 for BMW 5 Series E60 LCI 530i (2009)

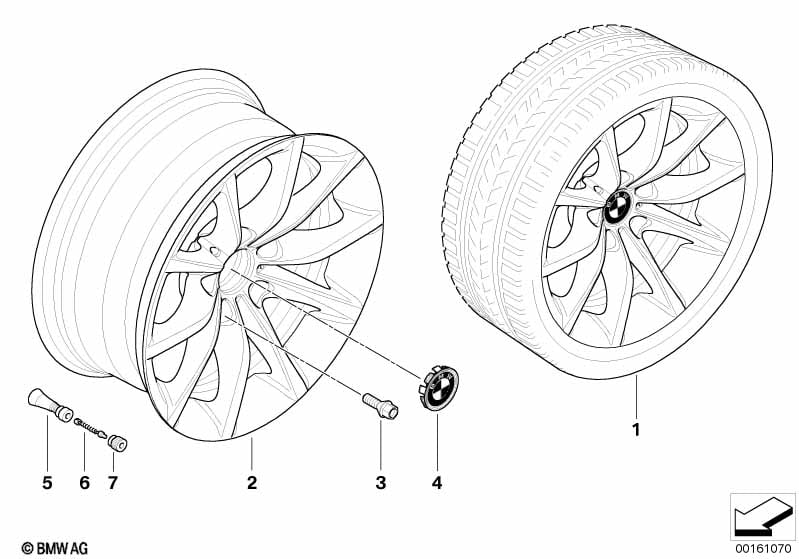

This BMW light alloy wheel, V-spoke 245 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with RSC = Runflat-System-Component |
=Yes |
|||||||||
| 02 | Light alloy rim | 8JX17 ET:20 | 4 | 36116777348 | $354.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
