Tire pressure control (RDC) - ctrl unit for BMW 3 Series E90 335i (2008)
This Tire pressure control (RDC) - ctrl unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Due to the EU ordinance on batteries, a component designation is required by law for RDC sensors or for components with a permanently installed battery! When purchasing this product, the attached document must be printed out and given to the customer. For vehicles with National version Canada and Tire pressure display |
L838A=Yes S2VBA=Yes |
||||||||

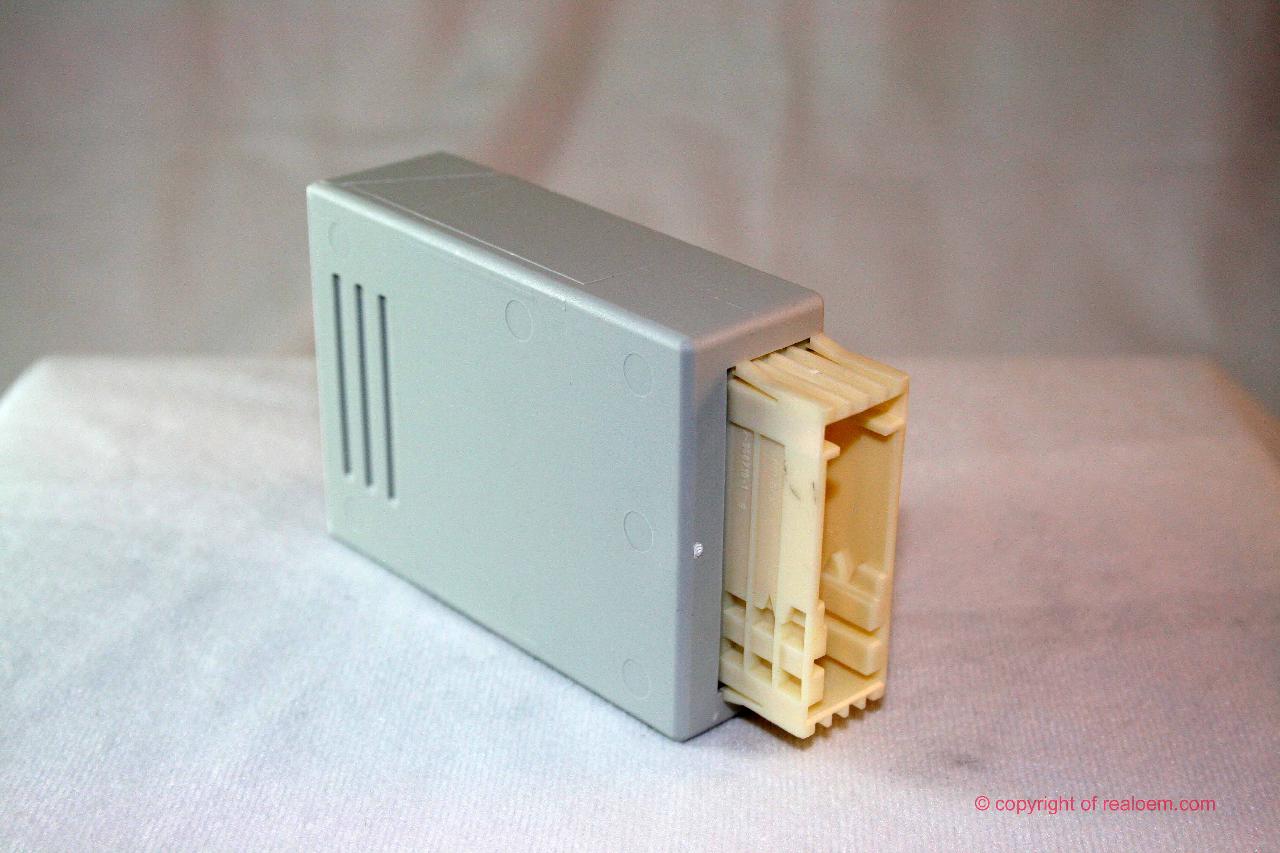

| 01 | Control unit RDC | 1 | 03/2007 | 36236785279 | $259.76 | Shop at ECS Tuning | ||||
| 02 | Reception antenna RDC | 1 | 03/2007 | 36236771043 | $71.10 | Shop at ECS Tuning | ||||
| 03 | Holder, reception antenna RDC | 1 | 03/2007 | 36206771836 | $1.82 | Shop at ECS Tuning | ||||
| 04 | Plastic nut for coarse threaded pin | M6 | 1 | 03/2007 | 07147336362 | Shop at ECS Tuning | ||||

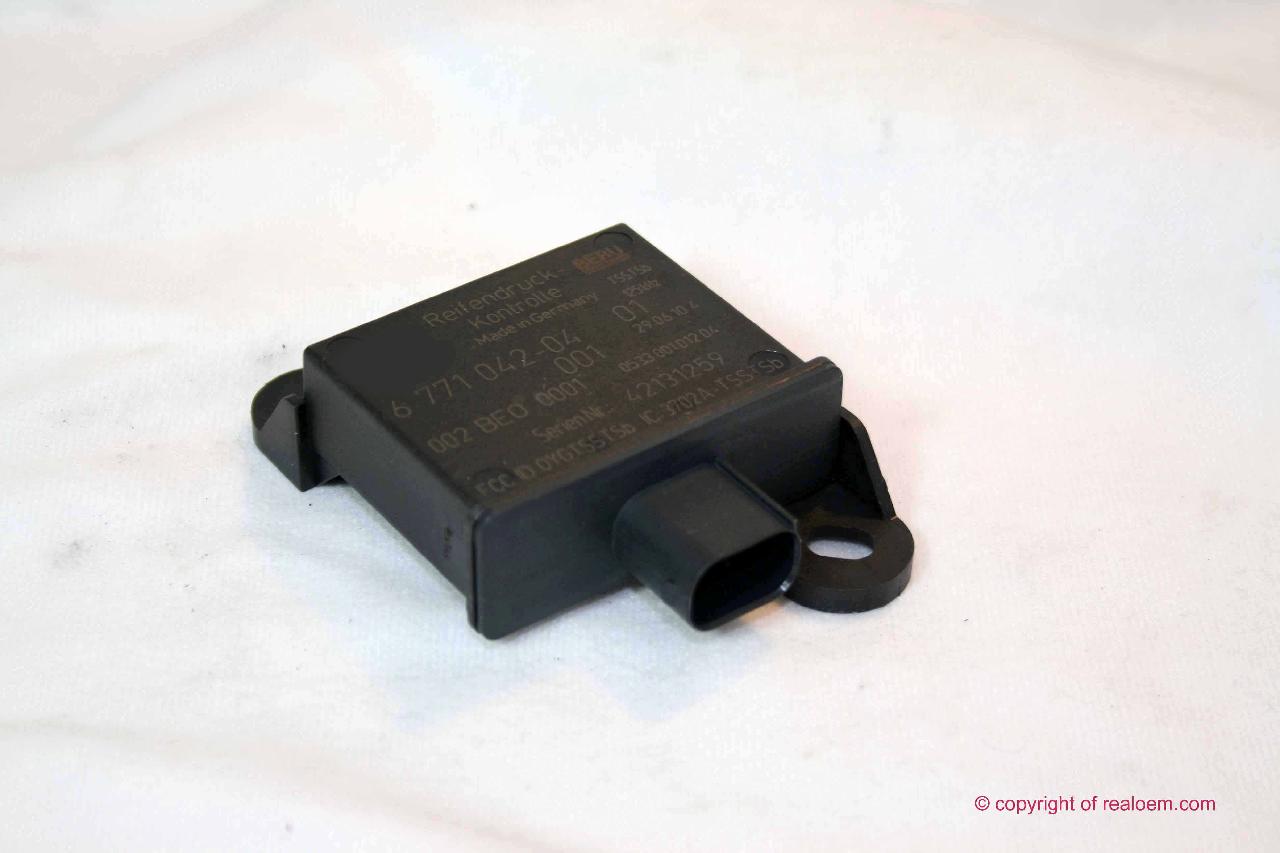

| 05 | Trigger transmitter RDC | 4 | 03/2007 | 09/2008 | 36236771042 | $73.05 | Shop at ECS Tuning | |||
| 06 | Expanding rivet | 4 | 03/2007 | 36206774888 | $1.76 | Shop at ECS Tuning | ||||
| 07 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 03/2007 | 07146951655 | $0.20 | Shop at ECS Tuning | |||
| 08 | Hex head screw | ST4,8X16-ZNS3 | 4 | 03/2007 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| additionally required parts: Screw-on valve RDC |
||||||||||
| 09 | Wheel electronics module, RDC | 433MHZ | 4 | 03/2007 | 36236798726 | Shop at ECS Tuning | ||||
| for application, see illustration BMW LA wheels |
||||||||||
| 10 | Screw-in valve RDC | ORANGE | 4 | 03/2007 | 36146792827 | $13.90 | Shop at ECS Tuning | |||
| 10 | Screw-in valve RDC | 4 | 03/2007 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 10 | Screw-in valve RDC | GRÜN | 4 | 03/2007 | 36146792830 | Shop at ECS Tuning | ||||
| 11 | sign "TPC" tire pressure control | 4 | 03/2007 | 36111096235 | $0.78 | Shop at ECS Tuning | ||||
| 12 | Universal socket housing uncoded | 4 POL. | 1 | 03/2007 | 61138365356 | $3.10 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 03/2007 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 03/2007 | 61130056961 | Shop at ECS Tuning | ||||
