BMW LA wheel, dual spoke 261 for BMW 1 Series E81 118i (2011)

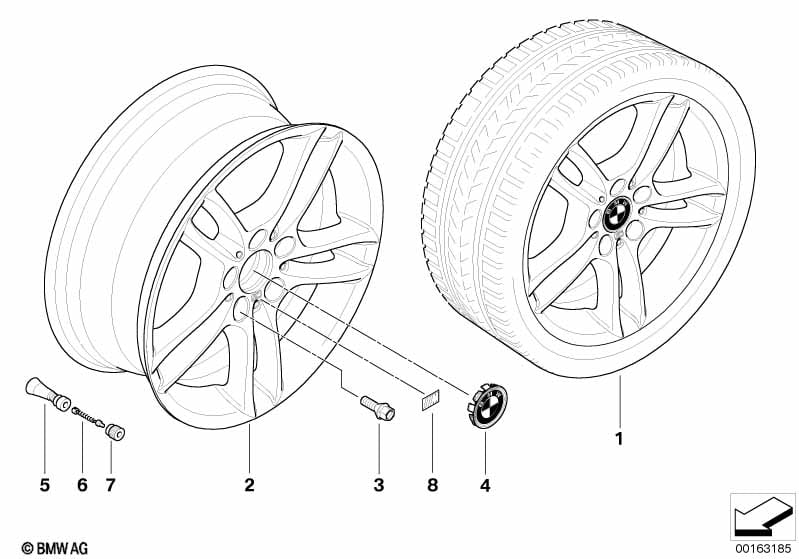

This BMW LA wheel, dual spoke 261 technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel, dual spoke 261 |
S2MRA=Yes |
||||||||
| 02 | Disc wheel, light alloy, reflex-silber | 71/2JX18 ET:49 | 2 | 36117891050 | $433.95 | Shop at ECS Tuning | ||||
| 02 | Disc wheel, light alloy, reflex-silber | 81/2JX18 ET:52 | 2 | 36117891051 | $476.95 | Shop at ECS Tuning | ||||
| For vehicles with Sports Edition |
P7MFA=Yes |
|||||||||
| 02 | Light alloy rim Ferricgrey | 71/2JX18 ET:49 | 2 | 36117842607 | $433.95 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim Ferricgrey | 81/2JX18 ET:52 | 2 | 36117842608 | $476.95 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 08 | M badge | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E81 118i BMW LA wheel, dual spoke 261?
- This technical diagram illustrates the BMW LA wheel, dual spoke 261 within the Wheels group for the 1 Series E81 118i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Disc wheel, light alloy, reflex-silber (Part #36117891050).
- Which models use the hardware listed in this BMW LA wheel, dual spoke 261?
- The hardware and components featured in the BMW LA wheel, dual spoke 261 are specific to the 1 Series E81 118i produced during 2011. These technical specifications ensure that parts like the Disc wheel, light alloy, reflex-silber (36117891050) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel, dual spoke 261 assembly?
- Each item in the BMW LA wheel, dual spoke 261 corresponds to the numbered list below the illustration. For the 1 Series E81 118i, you can identify the Disc wheel, light alloy, reflex-silber by locating its position on the schematic, which then links to the official BMW part number 36117891050 for the Wheels section.
