BMW LA wheel, star spoke 258 for BMW X6 E71 30dX

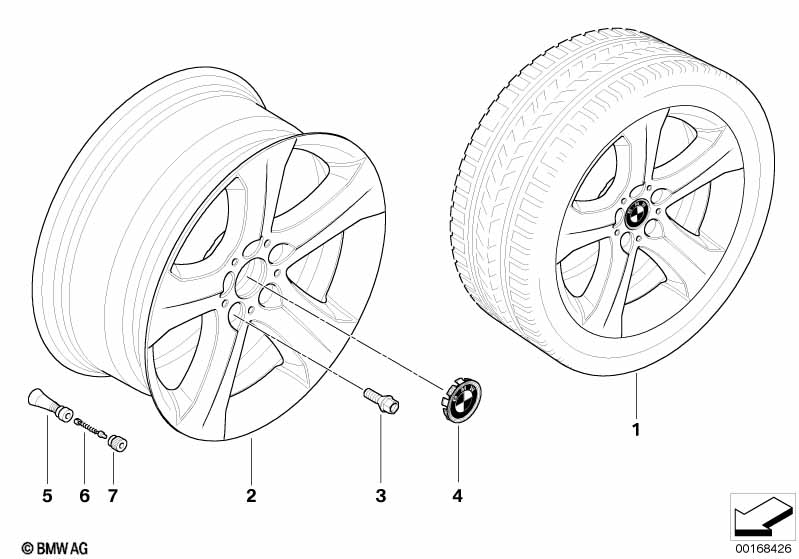

This BMW LA wheel, star spoke 258 technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel, star spoke 258 or BMW LA wheel, star spoke 258 |
S2S6A=Yes S2SHA=Yes |
||||||||
| Rear axle | ||||||||||
| 02 | Light alloy rim | 9JX19 ET:18 | 2 | 36116783244 | $581.00 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 10JX19 ET:21 | 2 | 36116778587 | Shop at ECS Tuning | |||||
| Front axle | ||||||||||
| 02 | Light alloy rim | 9JX19 ET:48 | 2 | 36116778586 | $581.00 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X6 E71 30dX BMW LA wheel, star spoke 258?
- This technical diagram illustrates the BMW LA wheel, star spoke 258 within the Wheels group for the X6 E71 30dX. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116783244).
- Which models use the hardware listed in this BMW LA wheel, star spoke 258?
- The hardware and components featured in the BMW LA wheel, star spoke 258 are specific to the X6 E71 30dX. These technical specifications ensure that parts like the Light alloy rim (36116783244) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel, star spoke 258 assembly?
- Each item in the BMW LA wheel, star spoke 258 corresponds to the numbered list below the illustration. For the X6 E71 30dX, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116783244 for the Wheels section.
