BMW LA wheel, V-spoke 265 individual for BMW X6 E71 30dX

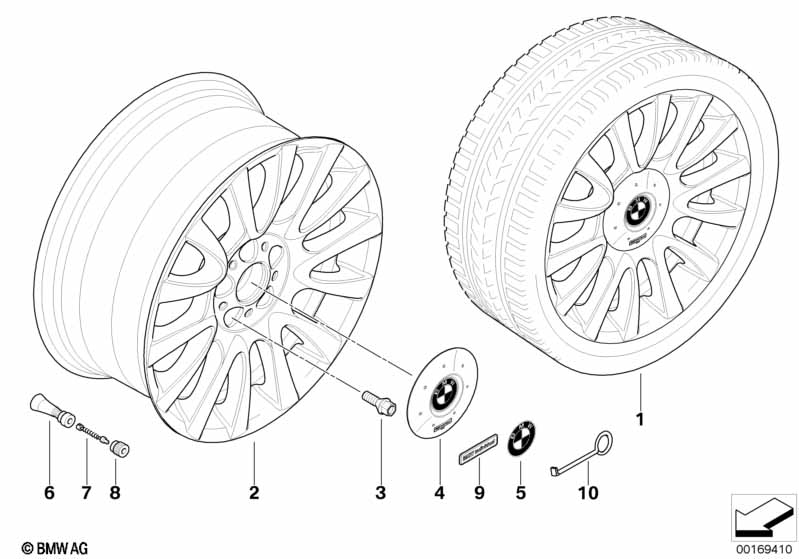

This BMW LA wheel, V-spoke 265 individual technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel V-Spoke 265 Individual |
S2MWA=Yes |
||||||||
| 02 | Light alloy rim | 9JX19 ET:48 | 2 | 36117839366 | $581.00 | Shop at ECS Tuning | ||||
| 02 | Light alloy rim | 10JX19 ET:21 | 2 | 36117841578 | +core | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Hub cover, kamacit-grau | D=173MM | 4 | 36137849418 | Shop at ECS Tuning | |||||
| 05 | BMW insignia stamped with adhesive film | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 06 | Rubber valve | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 09 | BMW Individual badge | 4 | 36137897226 | $5.60 | Shop at ECS Tuning | |||||
| 10 | Hub cap puller | 1 | 36132294421 | $9.86 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
