BMW LA wheel, V-spoke 285 for BMW 3 Series E90 325i (2008)

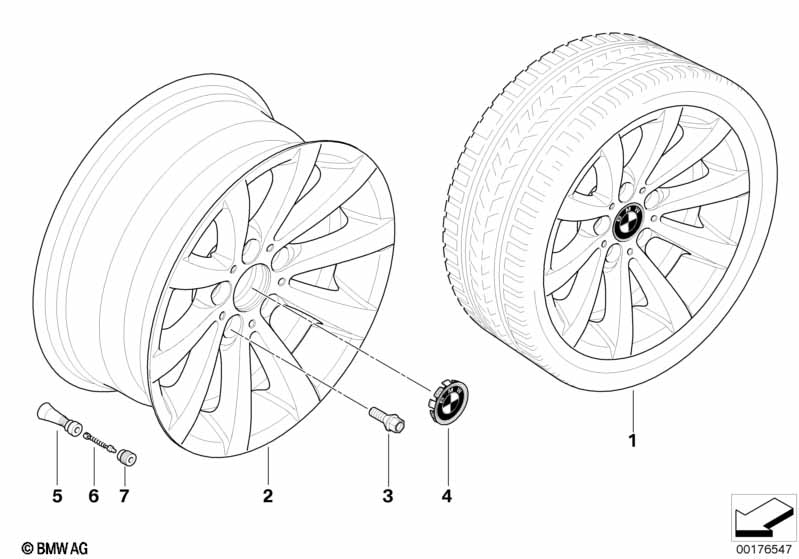

This BMW LA wheel, V-spoke 285 technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW LA wheel, V-spoke 285 |
S2KUA=Yes |
||||||||
| 02 | Light alloy rim | 8JX17 ET:34 | 4 | 36116783631 | $354.95 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 325i BMW LA wheel, V-spoke 285?
- This technical diagram illustrates the BMW LA wheel, V-spoke 285 within the Wheels group for the 3 Series E90 325i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116783631).
- Which models use the hardware listed in this BMW LA wheel, V-spoke 285?
- The hardware and components featured in the BMW LA wheel, V-spoke 285 are specific to the 3 Series E90 325i produced during 2008. These technical specifications ensure that parts like the Light alloy rim (36116783631) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel, V-spoke 285 assembly?
- Each item in the BMW LA wheel, V-spoke 285 corresponds to the numbered list below the illustration. For the 3 Series E90 325i, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116783631 for the Wheels section.
