BMW LA wheel V-Spoke 254 - 18'' for BMW 7 Series F02 730Li (2012)

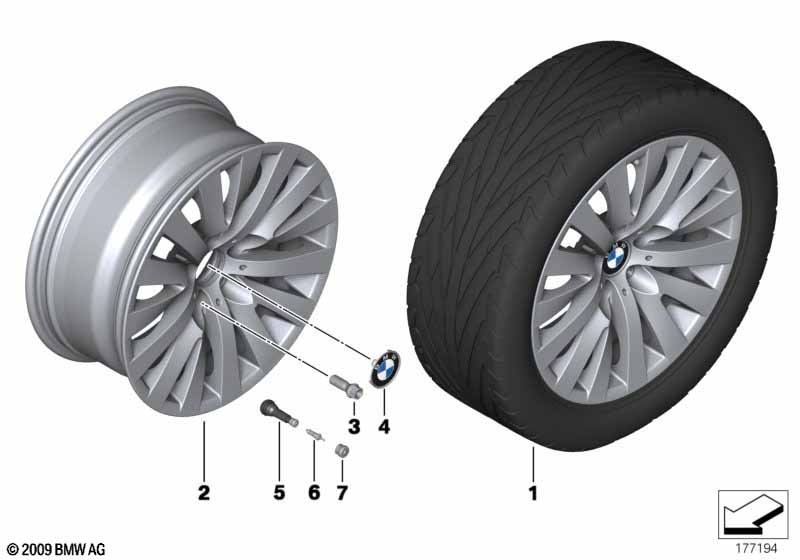

This BMW LA wheel V-Spoke 254 - 18'' technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Notice: Only for vehicles with EG-BE approval. Official entry in the registration documents may be required for the wheel and tire set under some conditions. Please check vehicle CoC to determine whether an official approval entry for the wheel and tire combination is present. If this is not the case it may be necessary to obtain post-factory field approval sanctioning use in the specific country!! For vehicles with BMW LA wheel V-spoke 254 |
S2KSA=Yes |
||||||||
| 02 | Light alloy rim | 8JX18 ET:30 | 4 | 36116775777 | $444.95 | Shop at ECS Tuning | ||||
| 03 | Wheel bolt black | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Wheel center cap with chrome ring | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Rubber valve | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| For vehicles with BMW LA wheel V-spoke 254 |
S2KSA=Yes |
|||||||||
| 06 | Valve | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Valve caps | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 730Li BMW LA wheel V-Spoke 254 - 18''?
- This technical diagram illustrates the BMW LA wheel V-Spoke 254 - 18'' within the Wheels group for the 7 Series F02 730Li produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Light alloy rim (Part #36116775777).
- Which models use the hardware listed in this BMW LA wheel V-Spoke 254 - 18''?
- The hardware and components featured in the BMW LA wheel V-Spoke 254 - 18'' are specific to the 7 Series F02 730Li produced during 2012. These technical specifications ensure that parts like the Light alloy rim (36116775777) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW LA wheel V-Spoke 254 - 18'' assembly?
- Each item in the BMW LA wheel V-Spoke 254 - 18'' corresponds to the numbered list below the illustration. For the 7 Series F02 730Li, you can identify the Light alloy rim by locating its position on the schematic, which then links to the official BMW part number 36116775777 for the Wheels section.
