Balance weight, lead for BMW 3 Series E30 320i (1992)

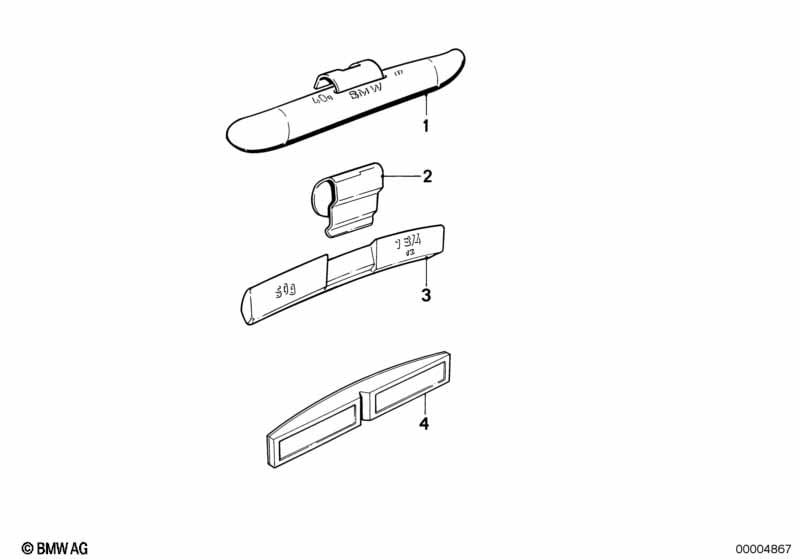

This Balance weight, lead technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | As per guideline of EU Used Car Direc., lead balancing weights may only be in- stalled in Production and Aftersales until 6/30/05. |
|||||||||
| 02 | Clip | X | 36111178746 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 03 | Balance weight, lead | 55G | X | 36111179260 | $0.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 60G | X | 36111179261 | $0.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 10G | X | 36111179271 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 20G | X | 36111179273 | $0.44 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 25G | X | 36111179274 | $0.44 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 30G | X | 36111179275 | $0.49 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 35G | X | 36111179276 | $0.53 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 40G | X | 36111179277 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 45G | X | 36111179278 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 50G | X | 36111179279 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 5G | X | 36111179321 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 03 | Balance weight, lead | 15G | X | 36111180896 | $0.42 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
