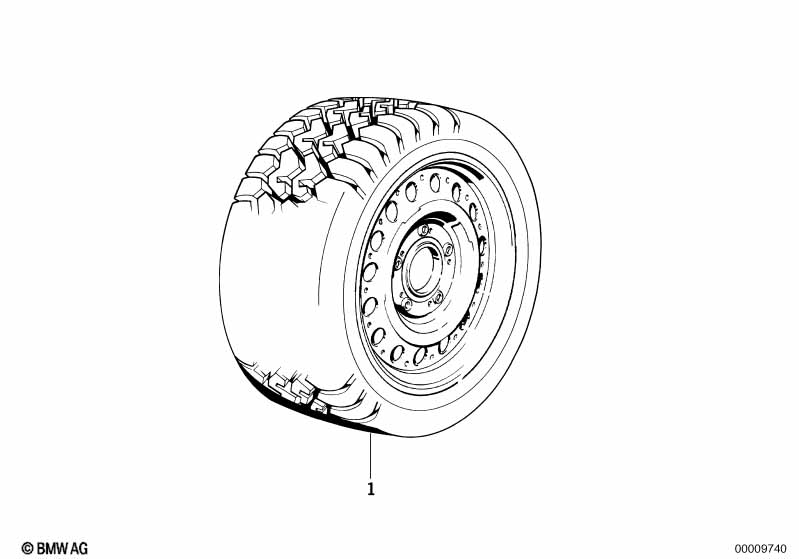

Winter wheel, complete for BMW 3 Series E30 320i (1992)
This Winter wheel, complete technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with TIRE Dunlop SP Winter Sport M2 |
=Yes |
|||||||||
| 01 | Complete wheel winter | 175/70R14Q | 4 | 85119409021 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Tires Pirelli Winter 190 Performance |
=Yes |
|||||||||
| 01 | Complete wheel winter | 195/65R14T | 4 | 82119409121 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Winter wheel, complete?
- This technical diagram illustrates the Winter wheel, complete within the Wheels group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Complete wheel winter (Part #85119409021).
- Which models use the hardware listed in this Winter wheel, complete?
- The hardware and components featured in the Winter wheel, complete are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Complete wheel winter (85119409021) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Winter wheel, complete assembly?
- Each item in the Winter wheel, complete corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Complete wheel winter by locating its position on the schematic, which then links to the official BMW part number 85119409021 for the Wheels section.
